22㎡ MOBILE BILLBOARD TRUCK-FONTON OLLIN

Short Description:

Model:E-R360

In recent years, more and more foreign customers want advertising vehicles to have functions similar to that of a towed advertising vehicle with a large screen that can rotate and fold, and they also want the vehicle to be equipped with a power chassis, which is convenient to move and promote anywhere


Product Detail

Product Tags

In recent years, more and more foreign customers want advertising vehicles to have functions similar to that of a towed advertising vehicle with a large screen that can rotate and fold, and they also want the vehicle to be equipped with a power chassis, which is convenient to move and promote anywhere. While the emergence of the JCT 22mobile billboard truck-Fonton OllinModelE-R360completely meets the needs of foreign customers for both. This advertising vehicle breaks the limitations of the traditional box-type vehicle on the screen area, and is equipped with the same power chassis. On the basis of this, the LED screen area of the 22㎡mobile billboard truck can reach 4800×3200mm, which is impossible for the traditional box advertising vehicle. At the same time, the vehicle is equipped with an imported silent generator, which can guarantee the demands of the power supply of the advertising vehicle anytime and anywhere. And it also has the hydraulic folding, hydraulic lifting, and screen rotation system of the towed advertising vehicle, which can realize the advantages of the LED screen viewing range of 360° without the invisible place, and make the 22㎡mobile billboard truck become the favoriite one into the eyes of foreign customers, being one of Jingchuan’s best-selling products exported abroad in recent years.

2 (3)
2 (2)

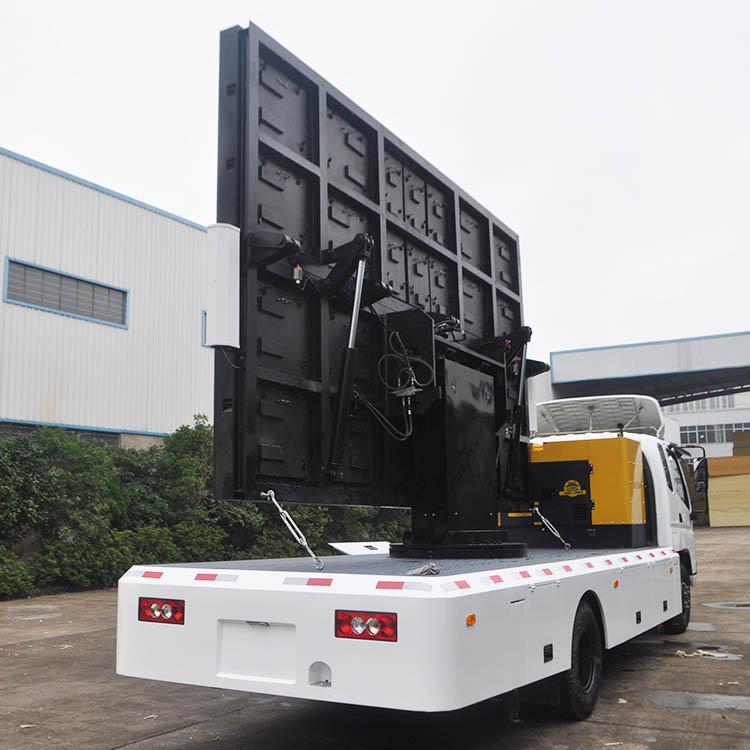

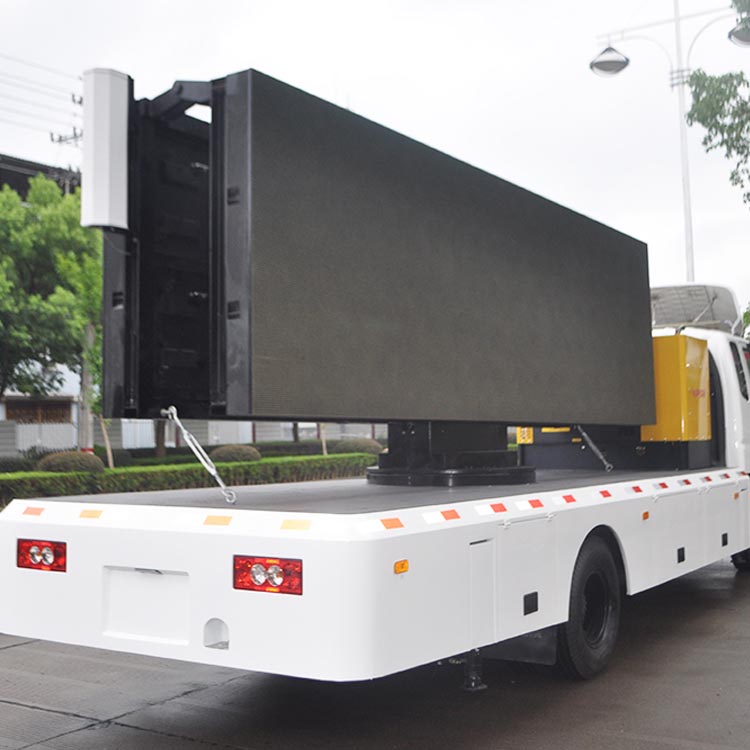

360°rotatable and foldable LED screen

The new system with integrated support, hydraulic lifting and rotating functions realizes the 360°visual range of the LED screen without dead angles, and further improves the communication effect. It is especially suitable for applications in crowded places such as downtowns, assemblies, and outdoor sports events.

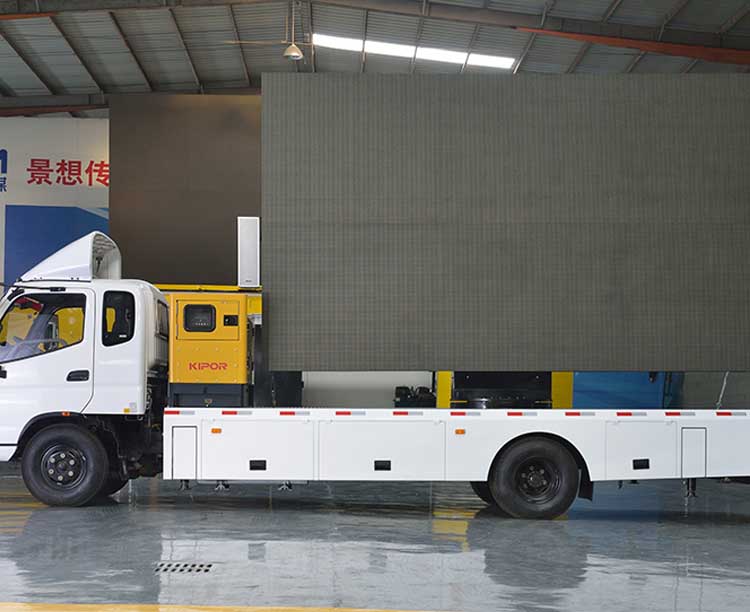

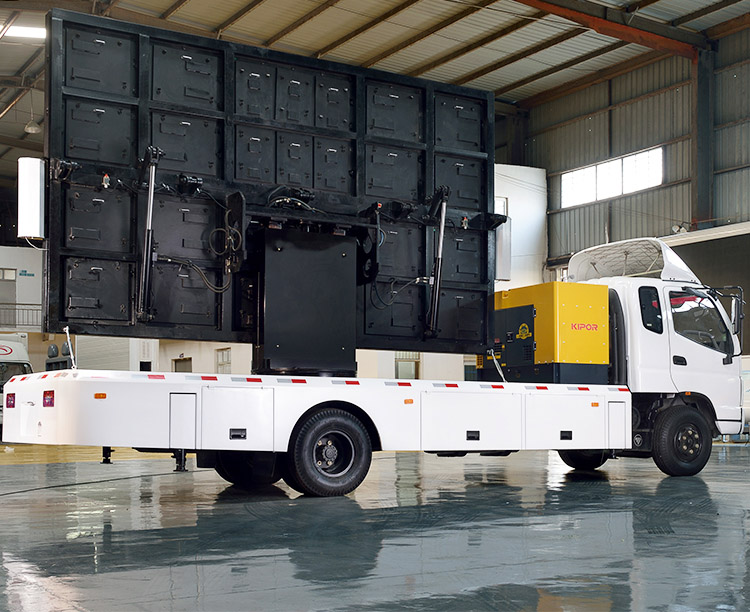

Media module integration

The concept of modular integration is introduced for the first time, integrating the LED screen, support lifting system, media control, and electrical control system to achieve modular installation. Customers can choose to purchase an independent top-mounted self-equipped vehicle chassis for self-installation.

2 (1)
2 (4)

Fully customized, customer first

Breaking the limitations of the traditional box-type vehicle equipment size selection, customers can realize independent selection in the choice of generator model, LED screen size and related configuration, realize full customization, and unique.

Model E-R36022mobile billboard truck

Chassis

Brand Fonton Ollin External Dimension 8170mm*2220mm*3340mm
Seat Single row 3seats Total Weight 9995KG
Emission Standard EuroⅤ Curb weight 9000KG
Wheel base 4500mm

Hydraulic Lifting and Supporting System

Hydraulic  LiftingSystem Lifting Range 2000mm,bearing 5T
Hydraulic Rotating System Screen can rotate 360degrees
Wing-against Level Against Level 8wind after screen lift up 2000mm
Supporting leg Stretch distance 300mm

LED Screen

Screen Size 4800mm*3200mm Dot Pitch P3/P4/P5/P6
Lifespan 100,000hours

Silent Generator Group

Power 16KW
Number ofcylinders Water-cooled inline 4-cylinder

Power parameter

Input Voltage

Three-phase five-wire 380V

Output Voltage

220V

Current

35A

Average power consumption

0.3kwh/㎡

Multimedia Control System

Monitor Support 8-way signal input
Media player with various kinds of common used video connector, be available for PC, camera and etc.

Sound

120W

Speaker

200W
