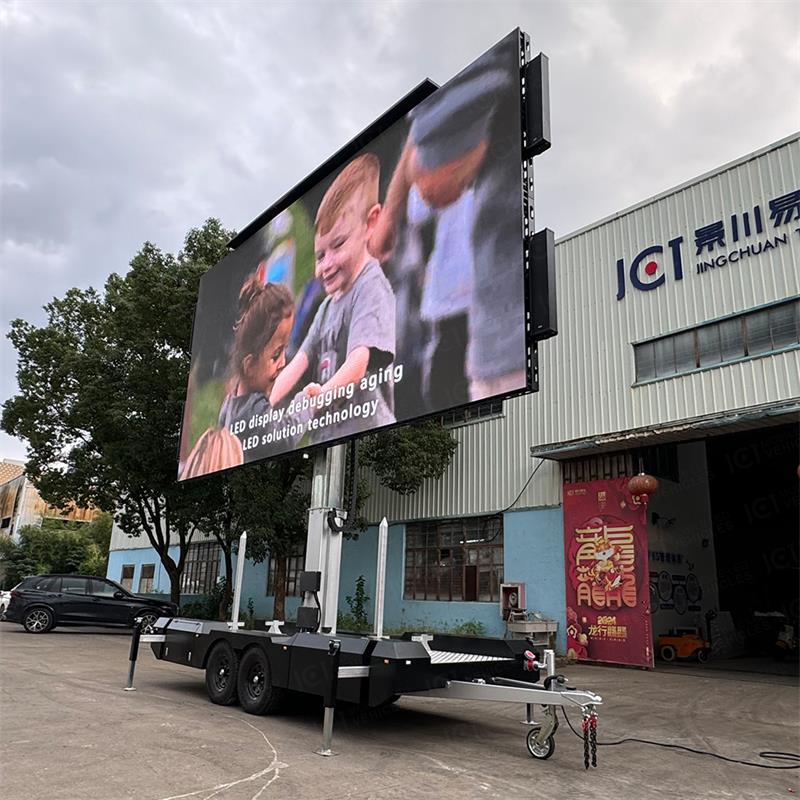

32sqm led screen trailer
| Specification | |||
| Trailer appearance | |||
| Gross weight | 3900kg | Dimension (screen up) | 7500×2100×2900mm |
| Chassis | German-Made AIKO | Max speed | 100Km/h |
| Breaking | Hydraulic breaking | Axle | 2 axles，Bearing 5000kg |
| LED Screen | |||
| Dimension | 8000mm(W)*4000mm(H) | Module Size | 250mm(W)*250mm(H) |
| Light brand | Kinglight | Dot Pitch | 3.91mm |
| Brightness | 5000cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 200w/㎡ | Max Power Consumption | 660w/㎡ |
| Power Supply | G-Engergy | DRIVE IC | ICN2153 |
| Receiving card | Nova A5 | Fresh rate | 3840 |
| Cabinet material | Die-casting aluminum | Cabinet size/weight | 500*1000mm/11.5KG |
| Maintenance mode | Front and Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 65410 Dots/㎡ |
| Module resolution | 64*64Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| Power parameter | |||
| Input voltage | Three phases five wires 380V | Output voltage | 220V |
| Inrush current | 30A | Average power consumption | 250wh/㎡ |
| Multimedia Control System | |||
| Player | NOVA | Model | TU15PRO |
| Video processor | NOVA | Model | VX400 |
| Sound System | |||
| Power amplifier | 1000W | Speaker | 200W*4 |
| Hydraulic System | |||
| Wind-proof level | Level 8 | Supporting legs | Stretching distance 300mm |
| Hydraulic Lifting and folding system | Lifting Range 4000mm, bearing 3000kg | Fold the ear screens on both sides | 4pcs electric pushrods folded |

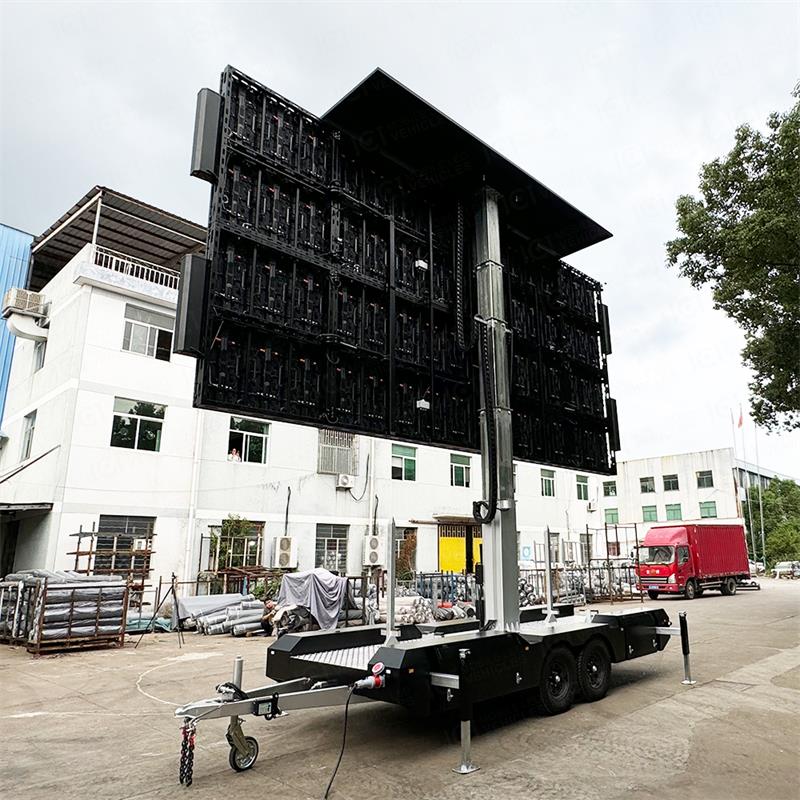

| Rotation | Electric rotation 360 degrees | ||
| Others | |||
| Wind speed sensor | Alarm with mobile APP | ||
| Maximum trailer weight ：5000 kg | |||
| Trailer width ：2.1m | |||
| Maximum Screen height (top):7.5m | |||
| Galvanized chassis made according to DIN EN 13814 and DIN EN 13782 | |||
| Anti slip and waterproof floor | |||
| Hydraulic, galvanized and powder coated telescopic mast with automatic mechanical safety locks |
|||
| Hydraulic pump with manual control (knobs) to lift LED screen up:3 phase | |||
| 360o screen manual rotation with mechanical lock | |||
| Auxilary emergency manual control - handpump - screen folding without power according to DIN EN 13814 | |||
| 4 x manually adjustable sliding outriggers:For very large screens it may be necessary to put out the outriggers for transport (you can take it to the car pulling the trailer). |
|||
In today's rapidly developing era of information communication, LED screen trailer, with its intuitive, vivid and convenient characteristics, has become a new tool for many outdoor advertising, activity display and information communication. MBD-32S 32sqm LED screen trailer, as an outdoor publicity media integrating mobile technology and multiple functions, stands out among many similar products with its humanized operation design and rapid expansion function, and becomes the new favorite in the market.
The MBD-32S 32sqm LED screen trailer adopts outdoor full color P3.91 screen technology, this configuration ensures that the screen can still present a clear, bright and delicate image effect under the complex and changeable outdoor lighting conditions. The point spacing design of P3.91 makes the picture more delicate and the color more real. Whether text, pictures or videos, it can be presented ideal, thus improving the visual experience of the audience. In terms of function, the MBD-32S LED screen trailer reflects its excellent information processing ability. It supports a variety of information input methods, including USB, GPRS wireless, WIFI wireless, mobile phone projection, etc., which provides convenience for users, whether it is a regular change of advertising content, or real-time update of news, weather forecast and other information, can be easily achieved.

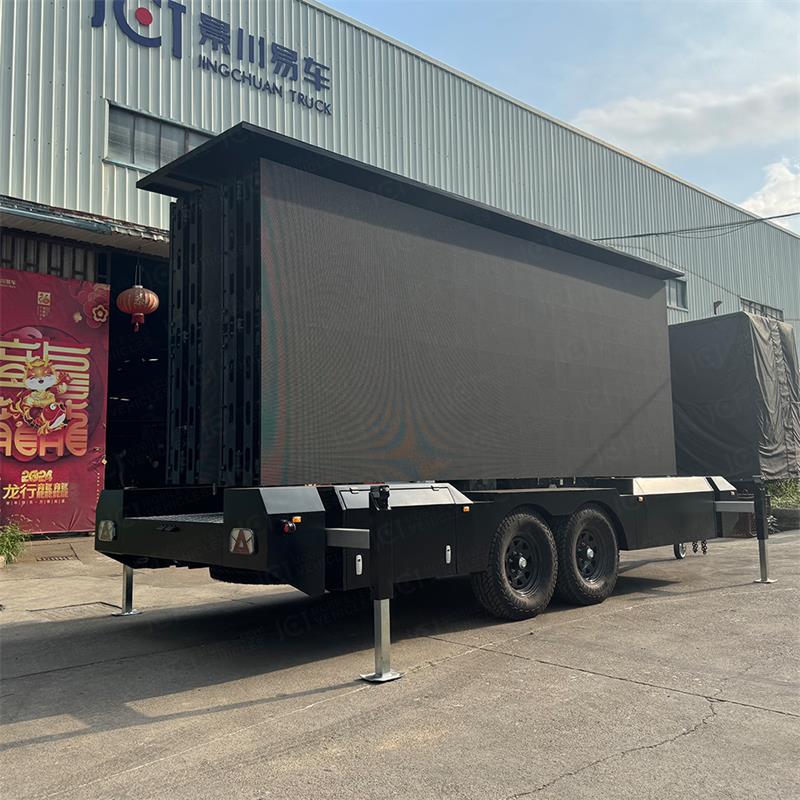

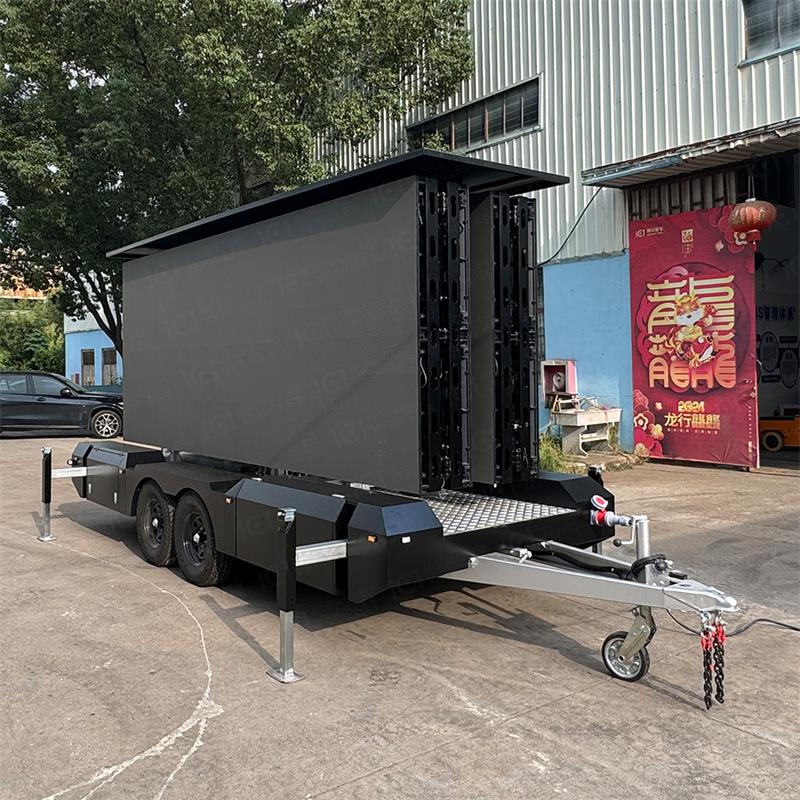

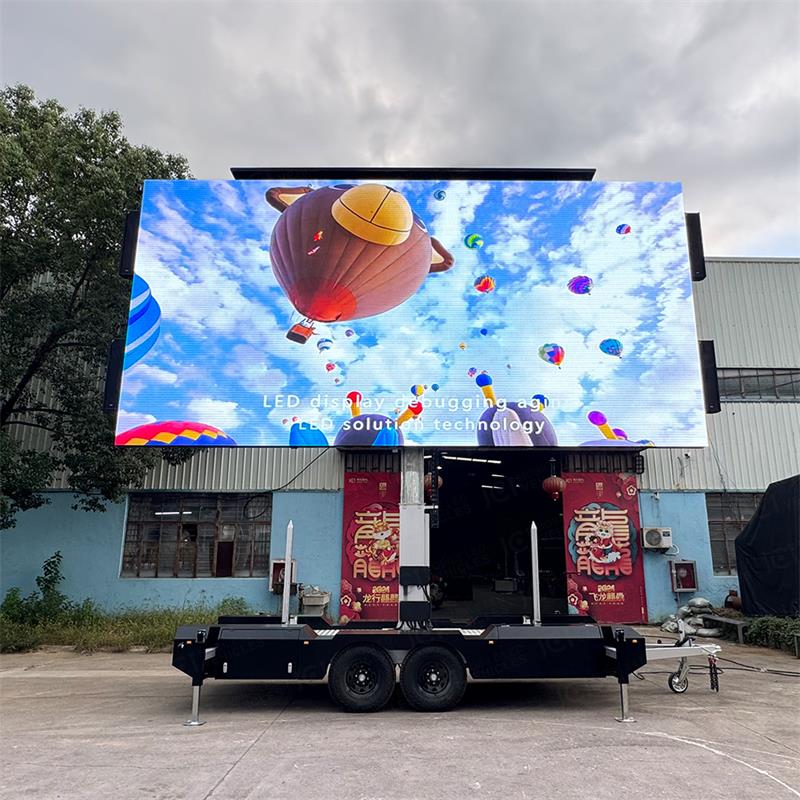

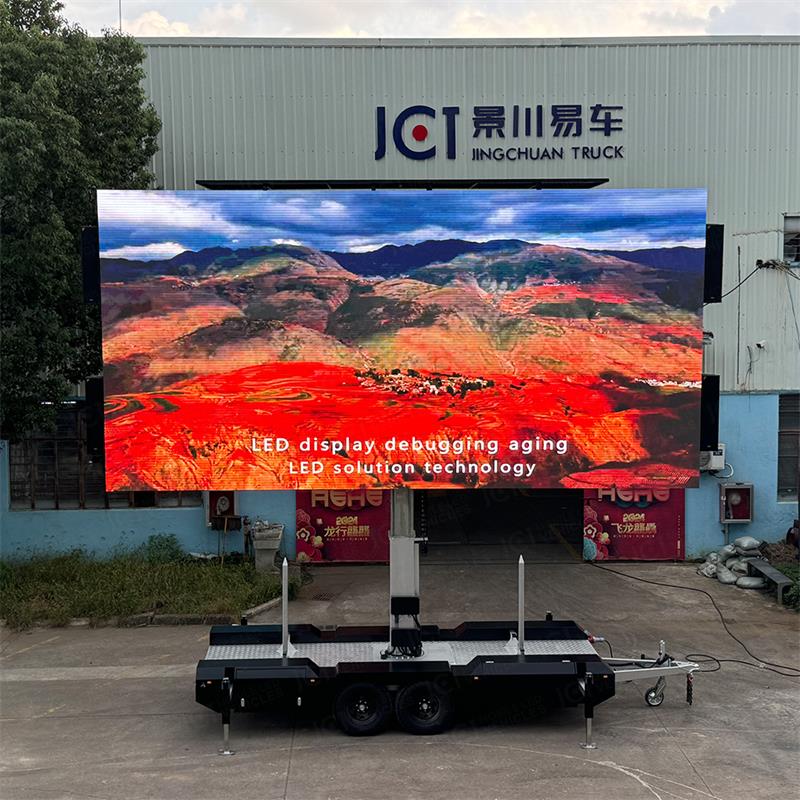

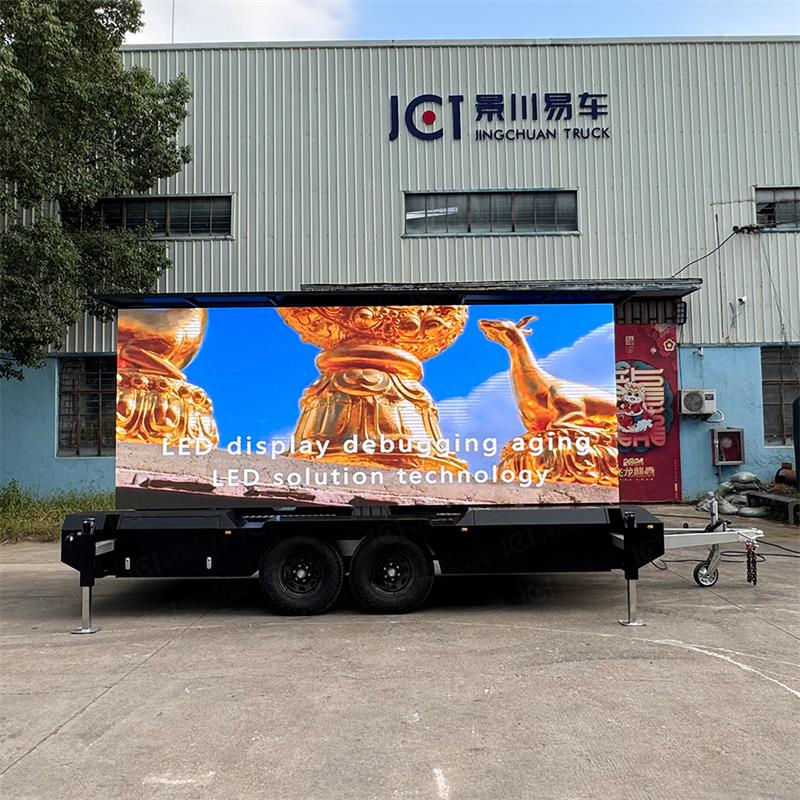

In terms of structural design, the MBD-32S LED screen trailer fully considers the portability and practicality. When the screen is closed, its overall size is 7500x2100x2900mm, which allows the screen to be easily stored and transported when it is not in use, greatly saving space. When the screen is fully expanded, the LED screen size reaches 8000mm * 4000mm, fully 32sqm. Such a huge display area, whether used for outdoor advertising display, live sports events or large-scale events, can attract a lot of attention and achieve the ideal publicity effect.

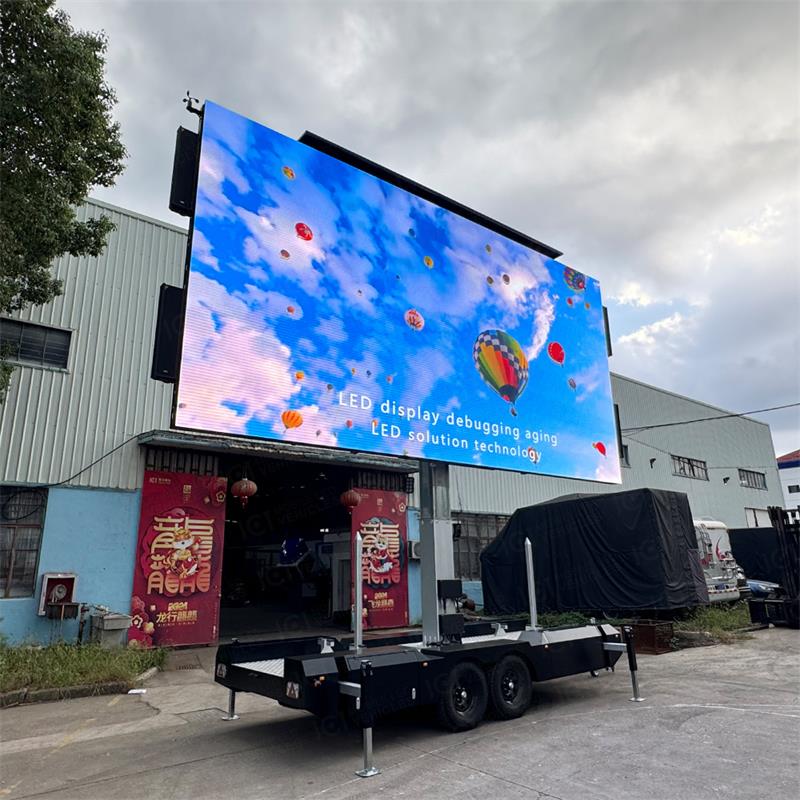

The MBD-32S 32sqm LED screen trailer is also designed in height. The height of the screen from the ground reaches 7500mm. This design not only enables the screen to stay away from the dust and people on the ground, but also ensures that the audience can clearly see the content of the screen at a long distance, further expanding the coverage and influence of the publicity.
In terms of mobility, the MBD-32S LED screen trailer is equipped with the German ALKO brand removable trailer chassis. This chassis is not only strong in structure, stable and reliable, but also convenient to move. No matter in the city streets, square or highway, it can easily deal with a variety of complex road conditions, ensuring that the LED screen trailer can quickly reach the activity position, providing strong support for a variety of outdoor publicity activities.
To ensure the stability and safety of the screen in various environments, the MBD-32S 32sqm LED screen trailer is also equipped with four mechanical support legs. These support legs are properly designed and easy to operate, and can be quickly deployed and fixed to the ground after the screen is deployed, providing additional support and stability for the screen and ensuring a good display in all variety of weather conditions.

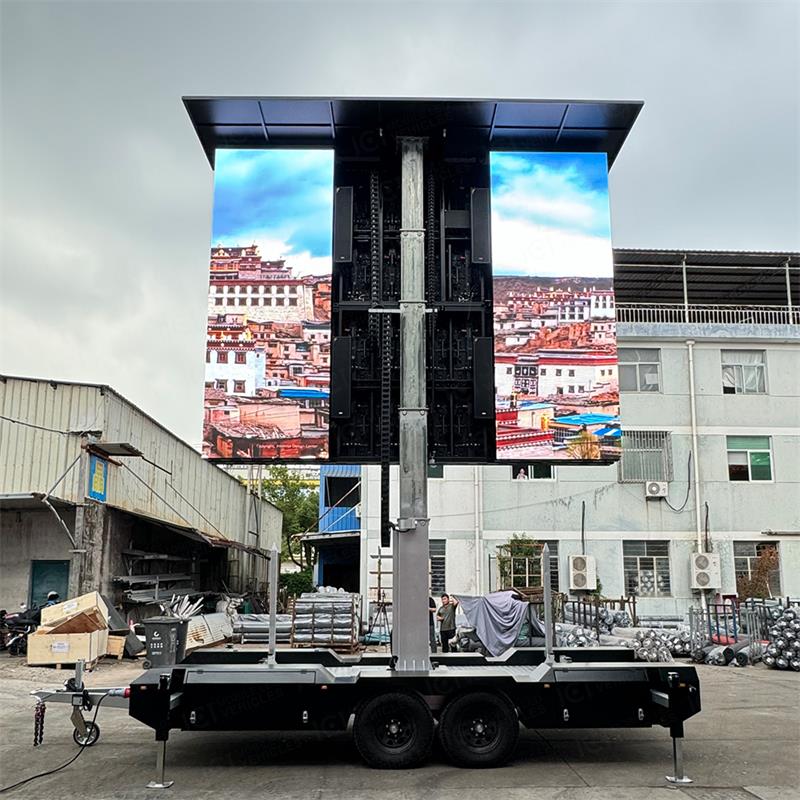

MBD-32S LED screen trailer exhibition is also equipped with a humanized rumor controller bowing system, users only need to operate through the simple rumor controller, can easily achieve the screen lifting, folding, rotation and other functions. This design not only improves the convenience of operation, but also greatly saves manpower and time costs, making the use of the screen more flexible and stable.
It is worth mentioning that the MBD-32S 32sqm LED screen trailer has also made a lot of safety considerations. The top of the screen is equipped with a wind speed sensor, which can monitor the wind speed changes in real time, and automatically activate the protection mechanism when the wind speed exceeds the set value, to ensure that the screen remains stable and safe in bad weather conditions. This design not only reflects the manufacturer's rigorous attitude towards the product and the deep concern for the safety of users, but also further enhances the market competitiveness of the product.
MBD-32S 32sqm LED screen trailer has become a new medium in the field of outdoor advertising and information communication with its stable configuration, multiple performance, convenient mobility and humanized operation. Whether from the visual effect, convenience of operation or safety and stability and other aspects, it is undoubtedly the preferred product on the market. In the future, with the continuous progress of technology and the continuous development of the market, MBD-32S LED screen trailer will bring more satisfactory publicity experience to more users.
