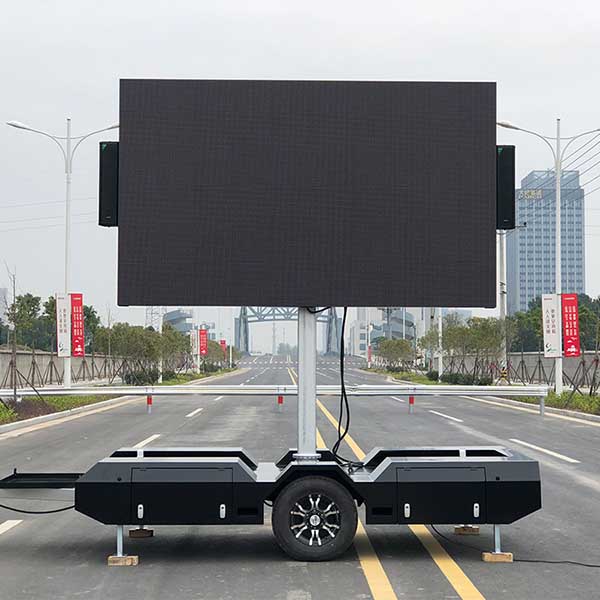

6㎡ mobile led trailer for product promotion
Model:E-F6

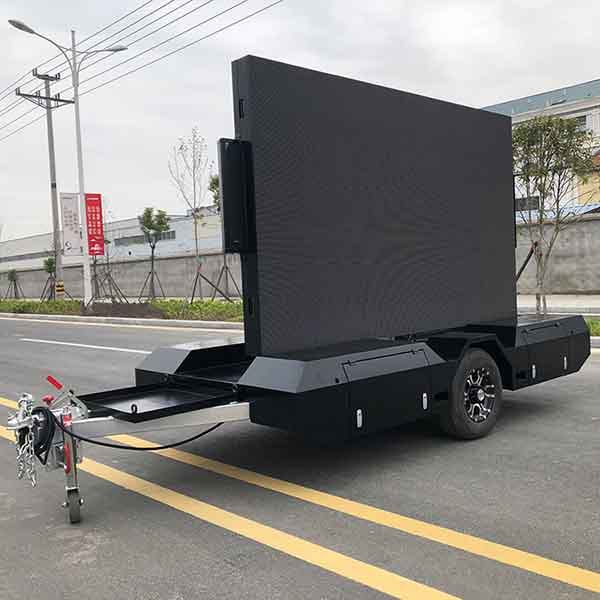

JCT 6m2 mobile LED trailer（Model:E-F6） is a new product of trailer series launched by JingChuan company in 2018. Based on the leading mobile led trailer E-F4, E-F6 adds the surface area of LED screen and make the screen size 3200 mm x 1920 mm. But compared with other products in trailer series, it has a relatively smaller screen size. So the 6m2 mobile LED trailer has a stronger shock of visual images and it is easier to park and switch parking places in crowded situations at the same time.
JCT company independently develops rotating guide pillars to integrate supporting system and hydraulic lifting and rotation system together which realizes 360 degree rotation with no dead angle, further enhancing communication effect, and is especially suitable for city, assembly, crowded occasion applications such as outdoor sports field.
| Specification | ||||
| Trailer appearance | ||||
| Gross weight | 1280kg | Dimension | 4965×1800×2050mm | |
| Max speed | 120Km/h | Single axle | 1500kg | German ALKO |
| Breaking | Crash brake and hand brake | |||
| LED Screen | ||||
| Dimension | 3200mm*1920mm | Module Size | 320mm(W)*160mm(H) | |
| Light brand | kinglight | Dot Pitch | 4mm | |
| Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours | |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 750w/㎡ | |
| Power Supply | Meanwell | DRIVE IC | ICN2153 | |
| Receiving card | Nova MRV316 | Fresh rate | 3840 | |
| Cabinet material | Iron | Cabinet weight | Iron 50kg | |

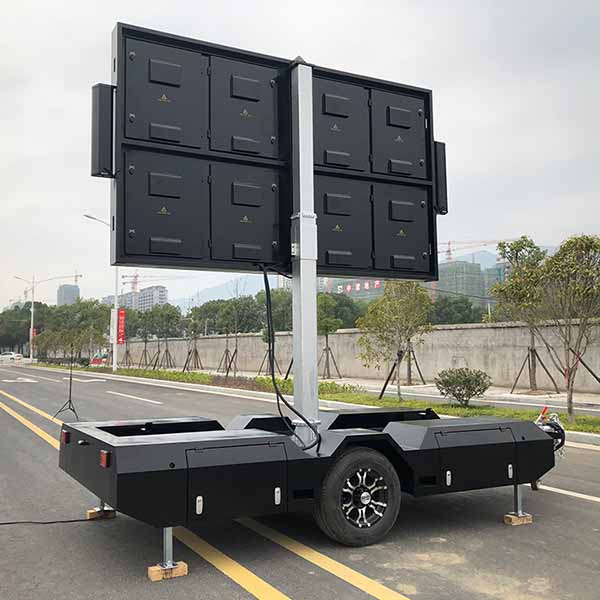

| Maintenance mode | Rear service | Pixel structure | 1R1G1B | |
| LED packaging method | SMD1921 | Operating Voltage | DC5V | |
| Module power | 18W | scanning method | 1/8 | |
| HUB | HUB75 | Pixel density | 62500Dots/㎡ | |
| Module resolution | 80*40Dots | Frame rate/ Grayscale, color | 60Hz,13bit | |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ | |
| system support | Windows XP,WIN 7， | |||
| Inrush current | 20A | Average power consumption | 250wh/㎡ | |
| Player System | ||||
| Player | NOVA | Modle | TB50-4G | |
| Luminance sensor | NOVA | |||
| Sound System | ||||
| Power amplifier | Unilateral power output:250W | Speaker | Max power consumption:50W*2 | |
| Hydraulic System | ||||
| Wind-proof level | Level 8 | Supporting legs | 4 pcs | |
| Hydraulic lifting: | 1300mm | Fold LED screen | 640mm | |
| Advantages: | ||||
| 1, can lift 1300MM, can rotate 360 degrees. | ||||
| 2, with Electric brake and hand brake！ | ||||
| 3, Trailer lights with EMARK certification, including indicator lights, brake lights, turn lights, side lights. | ||||
| 4, with 7 core signal connection head! | ||||
| 5. two tire fenders | ||||
| 6, 10mm safety chain, 80 grade rated ring | ||||
| 7,Trailer lights with US standard, EMARK certification | ||||
| 8,the whole vehicle galvanized process | ||||
| 9, brightness control card, automatically adjust brightness. | ||||
| 11，LED Play can be controlled wirelessly! | ||||
| 12. Users can remotely control LED SIGN by sending SMS messages. | ||||
| 13, equipped with GPS module, can remotely monitor the position of led trailer. | ||||
Fashion appearance, dynamic technology

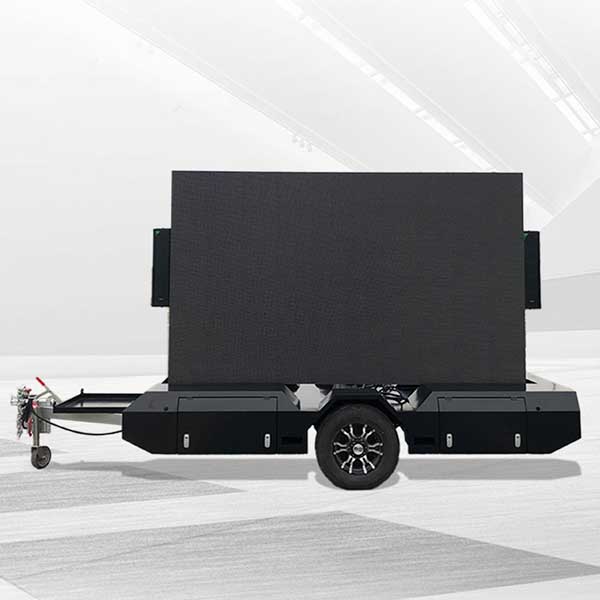

The 6m2 mobile LED trailer（Model：E-F6） changed the traditional streamline design of previous products to a frameless design with clean and neat lines and sharp edges, fully reflecting the sense of science, technology and modernization. It is especially suitable for traffic control, performance, fashion shows, automobile launchment and other activities for fashion trends or cutting-edge technology or products.
Imported hydraulic lifting system, safe and stable
6m2 solar mobile led trailer adopts imported hydraulic lifting system with 1.3m travel height and it is safe and stable. The height of LED screen can be adjusted according to the needs of the environment to ensure that audience can get the best viewing angle.

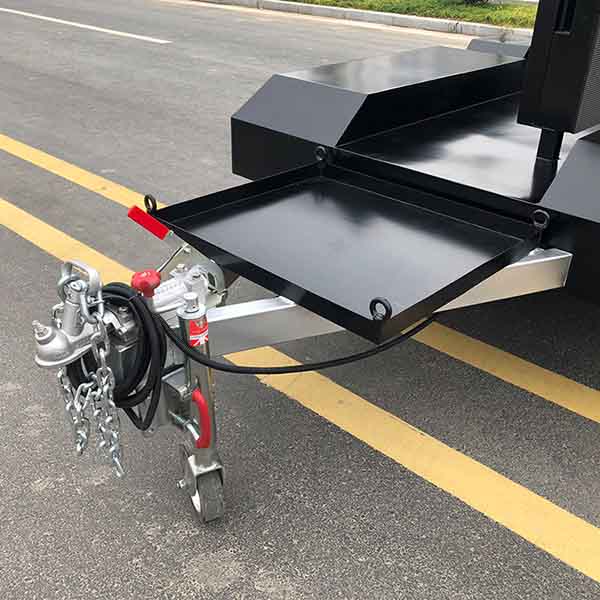

Unique traction bar design
6m2 mobile led trailer is equipped with inertial device and hand brake, and it can be towed to move by a car to do broadcast and publicity. The mechanical structure of manual supporting legs is easy and fast to operate.
Product technical parameters
1. Overall size: 4965*1800*2680mm, of which traction rod: 1263mm;
2. LED outdoor full color screen (P6) size: 3200*1920mm;
3. Lifting system: hydraulic cylinder imported from Italy with a stroke of 1300mm;

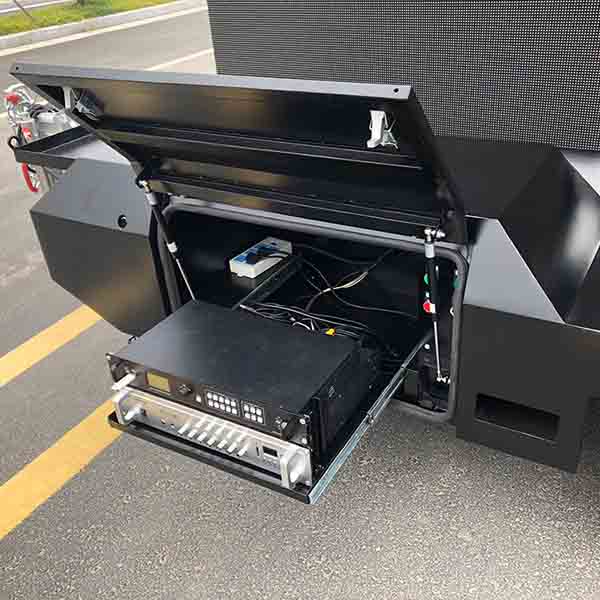

4. Equipped with multimedia playback system, supporting 4G, usb flash disk and mainstream video format;
