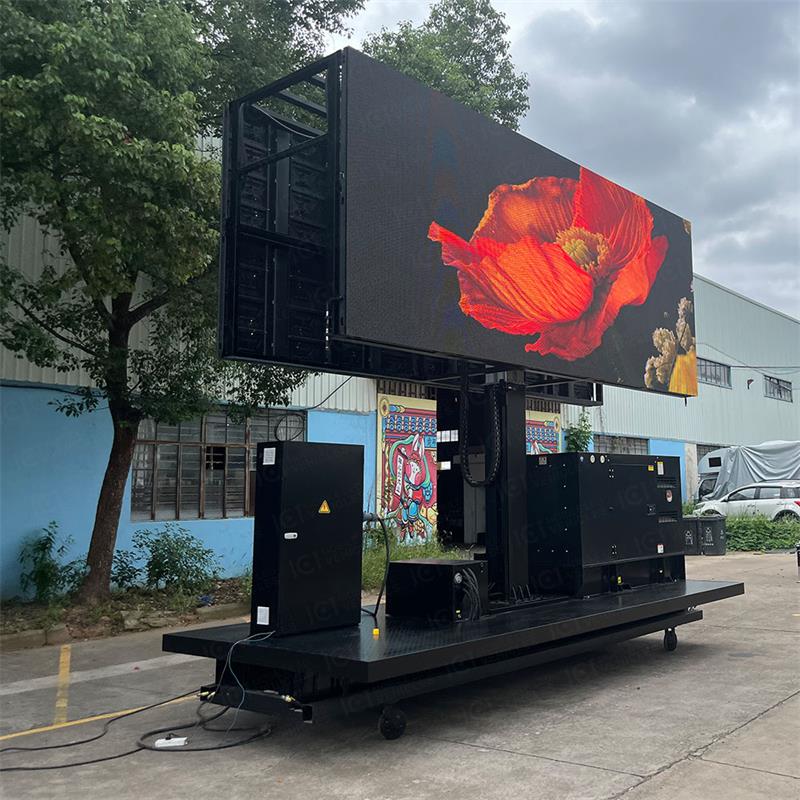

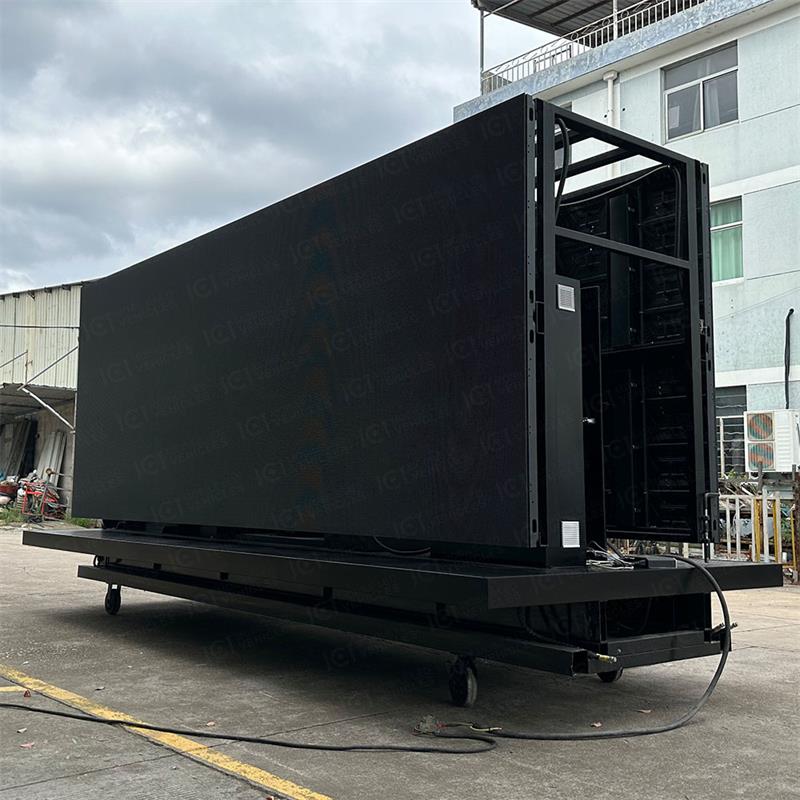

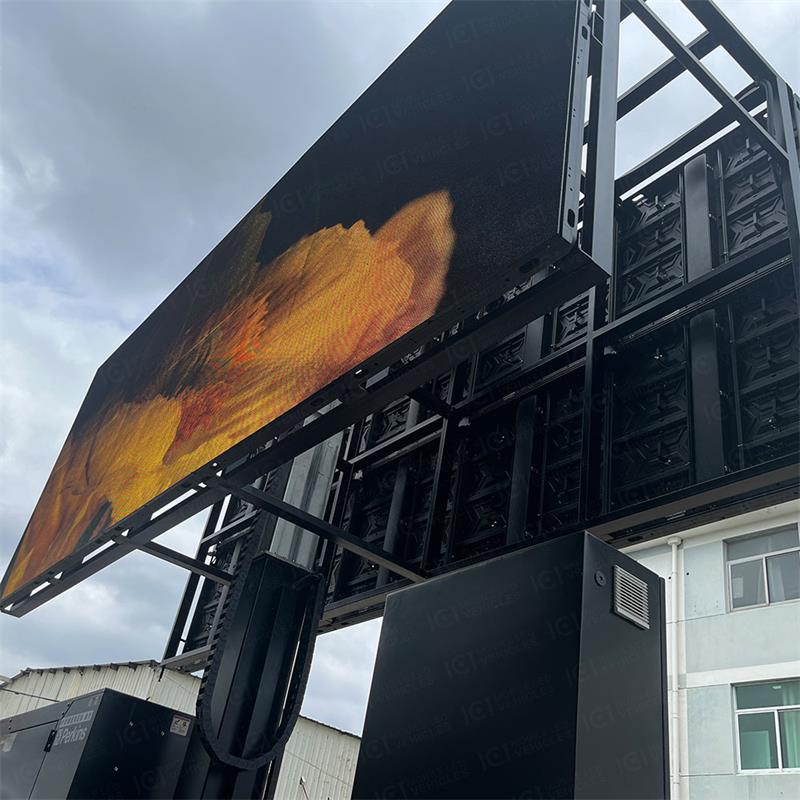

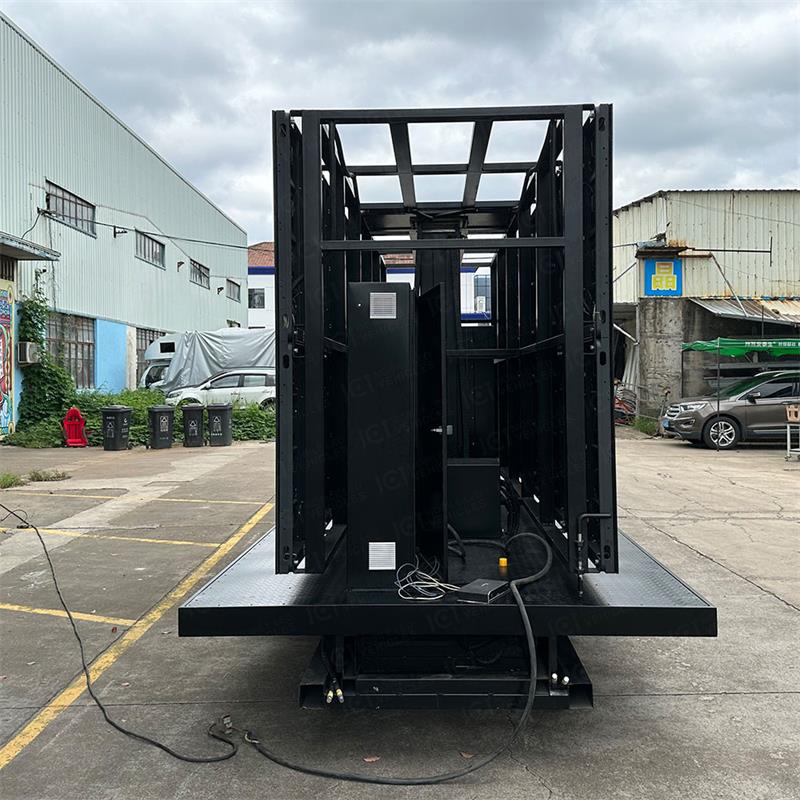

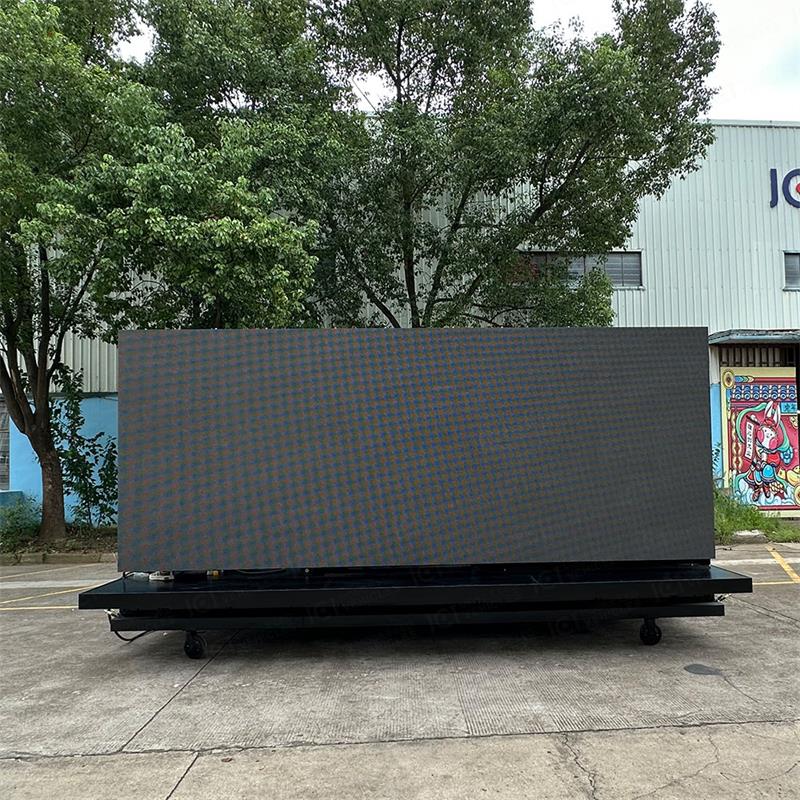

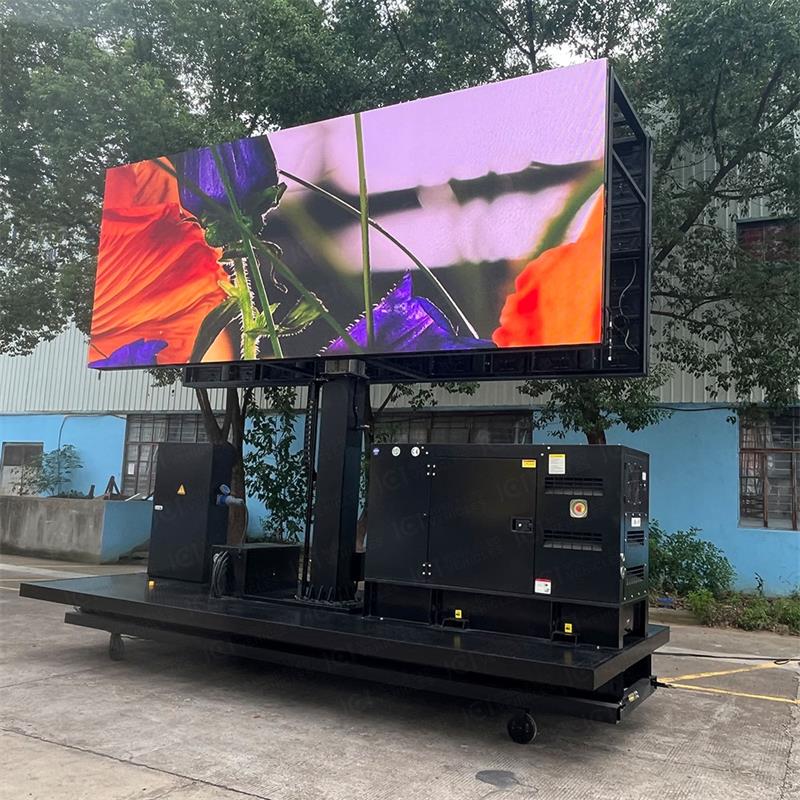

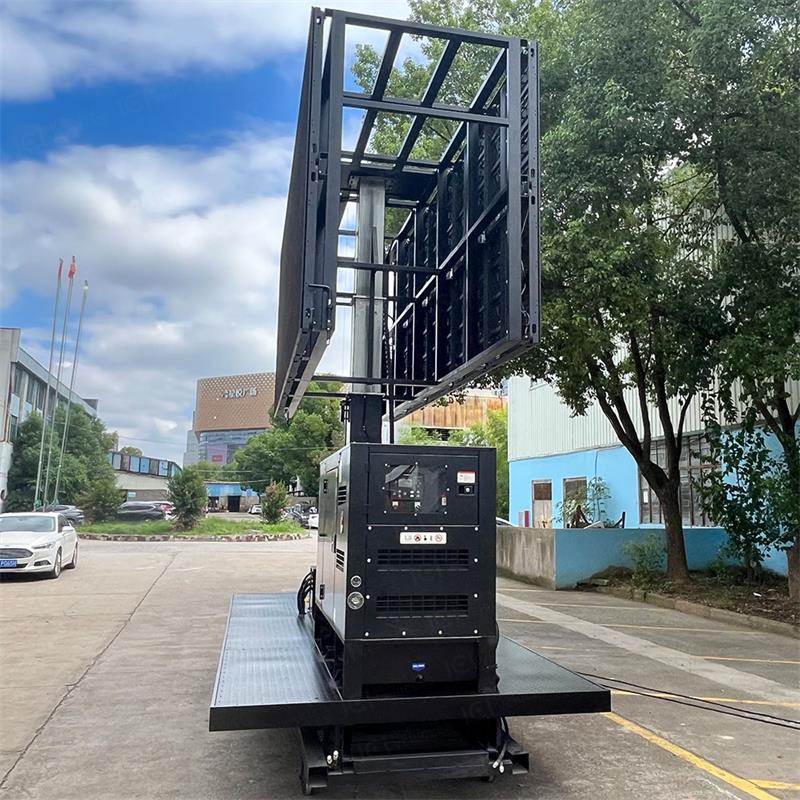

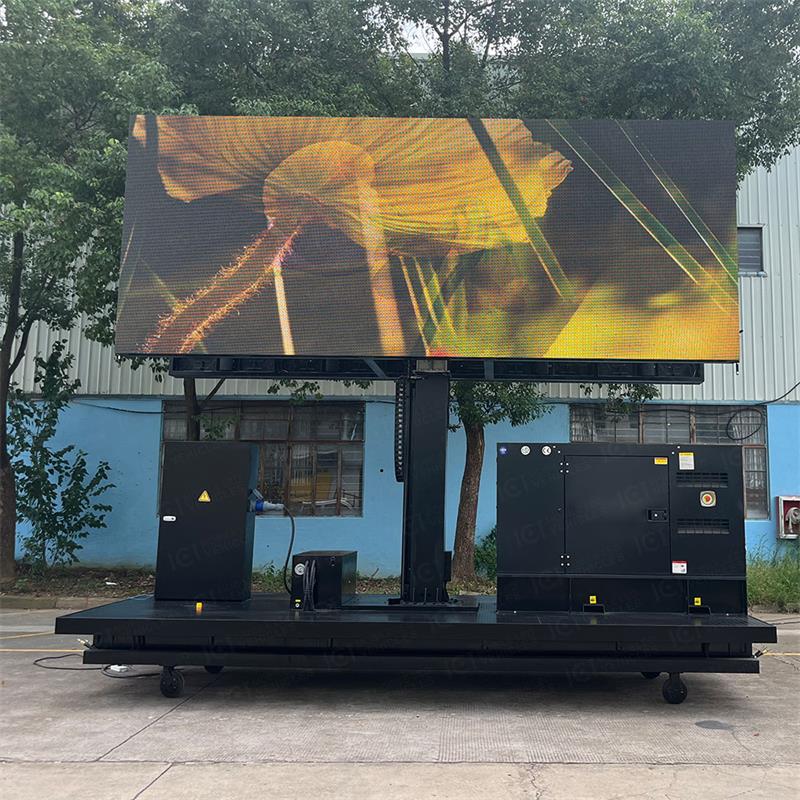

Flatform double-sided led screen Mobile led truck
| Specification | |||
| Truck Chassis | |||
| Model | 2020 Capt C, CM96-401-202J | Engine | Cummins B140 33 (103KW/ 502N.m), Euro II |
| Transmission | Faust 6 speed | Bridge | Dana 3.9/6.8T (main minus 5.125) |
| Wheelbase | 4700 mm | Plate spring | 8/10 + 7 |
| Tyre | 245/70R19.5 14PR vacuum tyre | Vehicle size | 8350×2330×2550 |
| Other configuration | left rudder/air conditioning /232mm frame/air brake/rear transverse stabilizer bar/power rotation /205L fuel tank/power window/central lock | Manufacturer | Dongfeng Motor Co. LTD |
| Hydraulic Lifting and Supporting System | |||
| Hydraulic lifting system | Lifting Range 2000mm, bearing 5000kgs | ||
| Hydraulic rotating system | Screen can rotate 360 degrees | ||
| Wind-against level | Against level 8 wind when screen is lift up 2m | ||
| Supporting legs | Stretching distance 300mm | ||
| Silent generator group | |||
| Dimension | 2200x900x12000mm | Power | 30KW |
| Brand | Perkins | Number of cylinders | Water-cooled inline 4 |
| Displacement | 1.197L | Bore x stroke | 84mm x 90mm |
| LED Screen | |||
| Dimension | 5760mm*2880mm*2 sides | Module Size | 320mm(W)*160mm(H) |
| Light brand | kinglight | Dot Pitch | 5mm |
| Brightness | ≥6500cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 250w/㎡ | Max Power Consumption | 700w/㎡ |
| Power Supply | Meanwell | DRIVE IC | MBI5124 |
| Receiving card | Nova MRV316 | Fresh rate | 1920 |
| Cabinet material | Iron | Cabinet weight | Iron 50kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD2727 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 40000 Dots/㎡ |
| Module resolution | 64*32Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Power parameter | |||
| Input voltage | Three phases five wires 380V | Output voltage | 220V |
| Inrush current | 40A | Power | 0.3kwh/㎡ |
| Player system | |||
| Video processor | NOVA | Model | VX600 |
| Sound system | |||
| Power amplifier | Power output:1500W | Speaker | 200W*4 |
The future of advertising: flat double-sided LED screen mobile LED truck
The use of LED screens in advertising is not new, but the combination of double-sided screens takes the concept to a whole new level. With the ability to display different content on each side of the truck, companies can maximize their advertising efforts and reach a larger audience at once. Whether promoting new products, sharing important information, or simply building brand awareness, these trucks provide a versatile and impactful marketing platform.
As the world becomes increasingly digital, consumers are constantly bombarded with advertising across all channels. This makes it more challenging for companies to stand out and capture the attention of their target audience. Flat Double Sided LED Screen Mobile LED Truck offers a unique and eye-catching way to cut through the noise and leave a lasting impression on potential customers.
In addition to effectiveness, these trucks offer flexibility and convenience that traditional advertising methods may lack. They can be deployed to specific locations where your target audience is likely to be, ensuring messages reach the right people at the right time.
Overall, the rise of flat-panel double-sided LED screens and mobile LED trucks represents an exciting shift in the advertising industry. By harnessing the power of digital technology and combining it with the mobility of trucks, companies can create impactful and engaging advertising campaigns that leave a lasting impression on their audiences. As technology continues to advance, it’s clear that the future of advertising is already here and evolving.
