Hand-pull electric tractor

Short Description:

Model:Model:FL350

FL350 hand-pull electric tractor, with a rated load of 3.5 t, serves as an efficient auxiliary tool for LED vehicle screen trailer transportation, integrating convenience, efficiency and environmental protection. It cleverly combines the flexibility of the traditional tractor with the labor-saving advantages of the electric drive technology, specially designed for LED screen trailer mobile application scenarios. Through electric drive, greatly reduce the physical burden of operators, improve the work efficiency, easily achieve LED trailer equipment transfer.


Product Detail

Product Tags

 Identification
Model FL350
 Power supply Electric
Operating type Walking style
Max traction weight 3500 kg
Rated pulling force 1100 N
 Wheelbase 697 mm
Weight
Truck weight(with battery) 350 kg
Battery weight 2X34 kg
Tyre
Tire type,Drive wheel/Bearing wheel Rubber/PU
Sizes of drive wheel(diameter×width) 2×Φ375×115 mm
Sizes of bearing wheel(diameter×width) Φ300×100 mm
Sizes of Supporting wheel(diameter×width) Φ100×50 mm
Drive wheel/bearing wheel number(×=Drive wheel) 2×/1 mm
Front gauge 522 mm
Dimensions
Overall height 1260 mm
Height of tiller in drive position 950/1200 mm
Hook height 220/278/334mm
Overall length 1426 mm
Overall width 790 mm
Ground clearance 100 mm
Turning radius 1195 mm
 Performance
Drive speed  load/unload 4/6 km/h
Rated pulling force 1100 N
Max pulling force 1500 N
Max gradeability  load/unload 3/5 %
Brake type Electromagnetic
Motor
Drive motor rating S2 60min 24V/1.5 kw
Charger (external) 24V/15A
Battery voltage/nominal capacity 2×12V/107A
Battery weight 2X34 kg
  Others
Type of drive control AC
Steering type Mechanics
Noise level <70 dB(A)
Type of trailer coupling Latch

Product features

Electric power: built-in high efficiency motor, provide stable and powerful power output, easy to cope with a variety of load requirements.

Hand pull operation: keep the hand pull design, facilitate manual operation in insufficient power or special environment, increase the flexibility of use.

Intelligent control: equipped with a simple control panel, one-button start / stop, simple and intuitive operation.

Energy saving and high efficiency: using advanced battery technology, high energy conversion rate, strong endurance.

Safety and stability: equipped with anti-skid tires and overload protection and other safety devices, to ensure the safety and stability in the process of use.

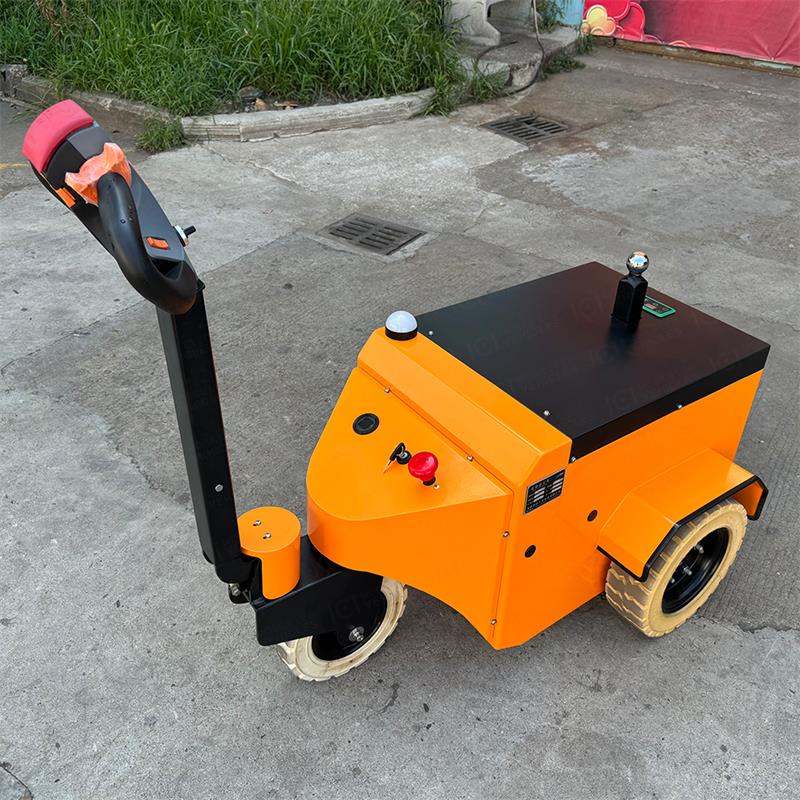

Hand-pull electric tractor-6

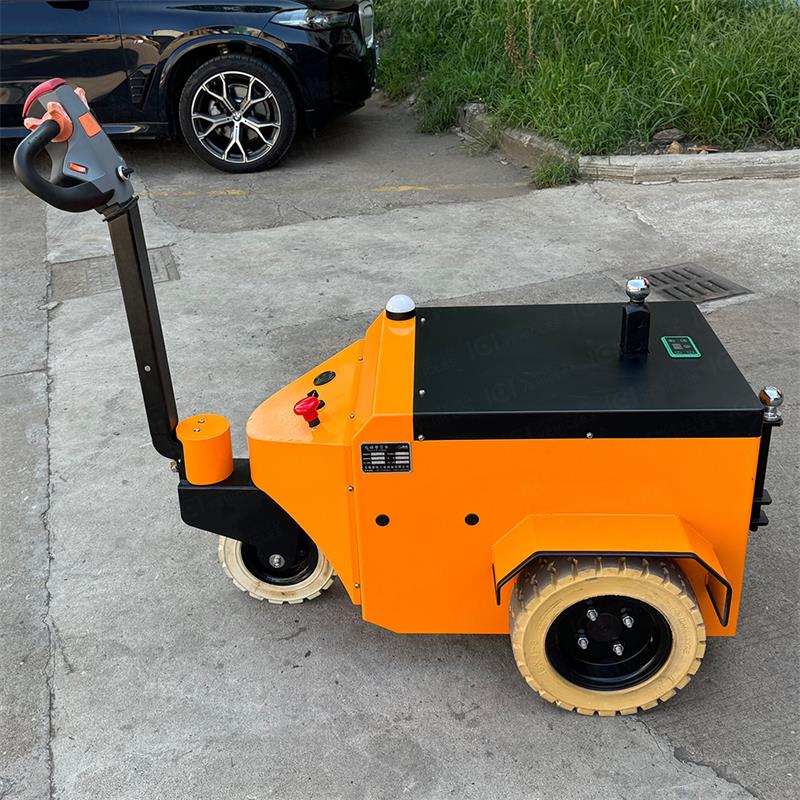

Hand-pull electric tractor-7

The operation mode of FL350 hand-pull electric tractor is simple and intuitive. The user only needs to load the LED trailer on the tractor, and start the motor through the control panel to realize the electric power driving. When steering or parking is required, the direction can be controlled by the hand pull rod. Its working principle is based on the electric drive system, which receives the energy from the battery and converts it into mechanical energy to drive the wheel rotation, thus driving the entire tractor and the loaded LED trailer forward.

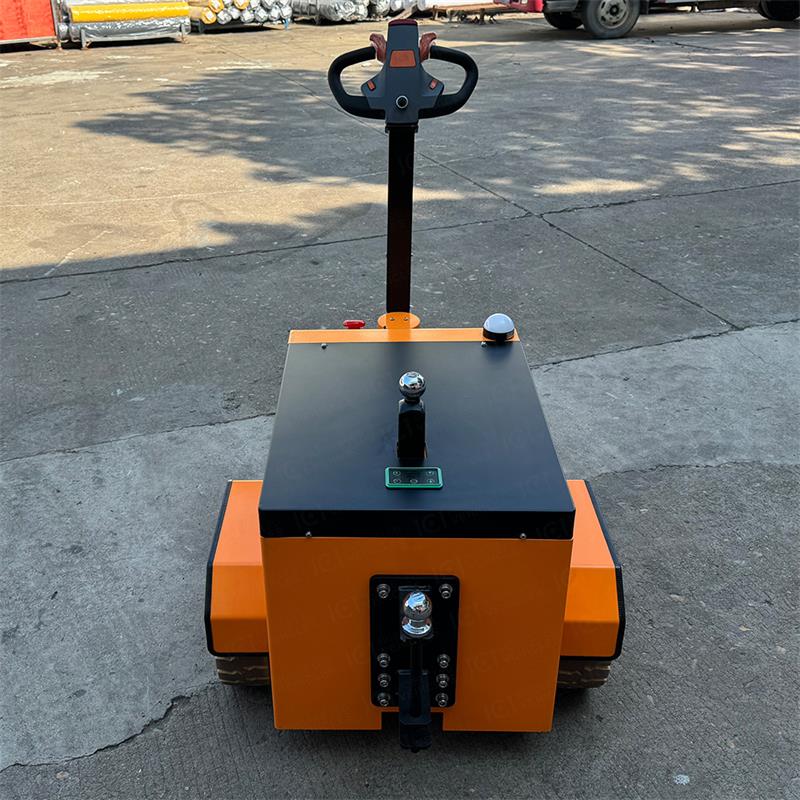

Hand-pull electric tractor-8

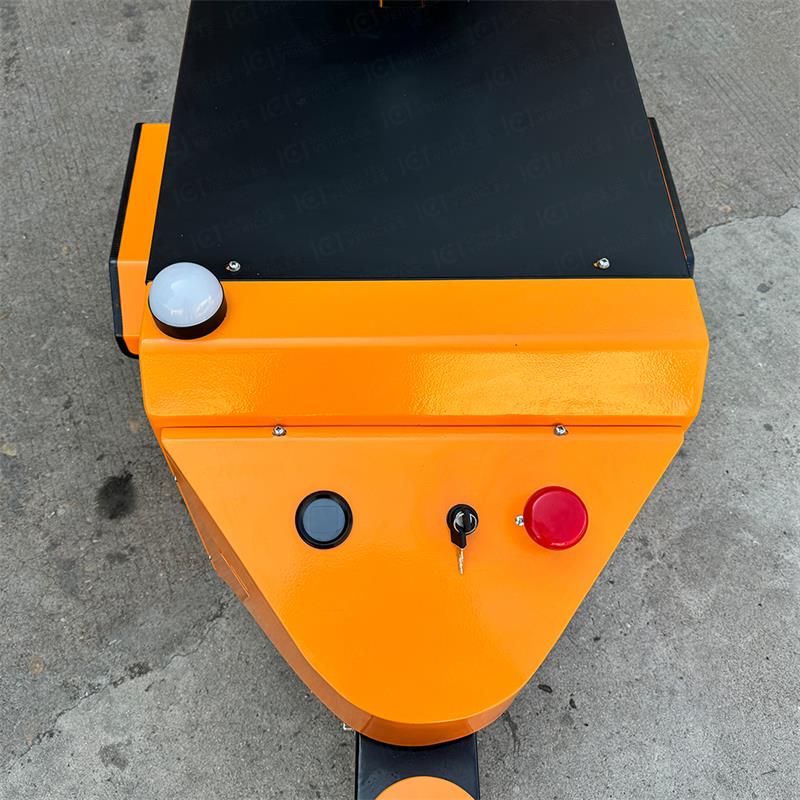

Hand-pull electric tractor-9

FL350 hand pull type electric tractor can not only be applied to LED trailer daily mobile transportation, it can also be widely used in the warehouse internal goods fast handling and finishing, the factory production line material distribution, supermarkets, mall goods shelves and replenishment, luggage transportation, goods sorting and transport, etc., multi-function applications make it more attractive.

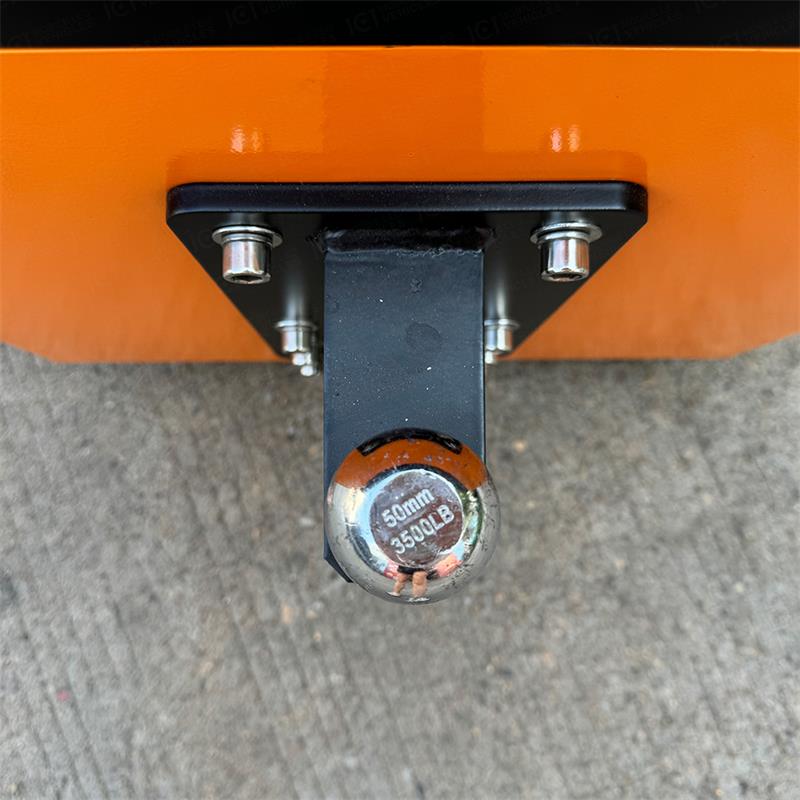

Hand-pull electric tractor-10

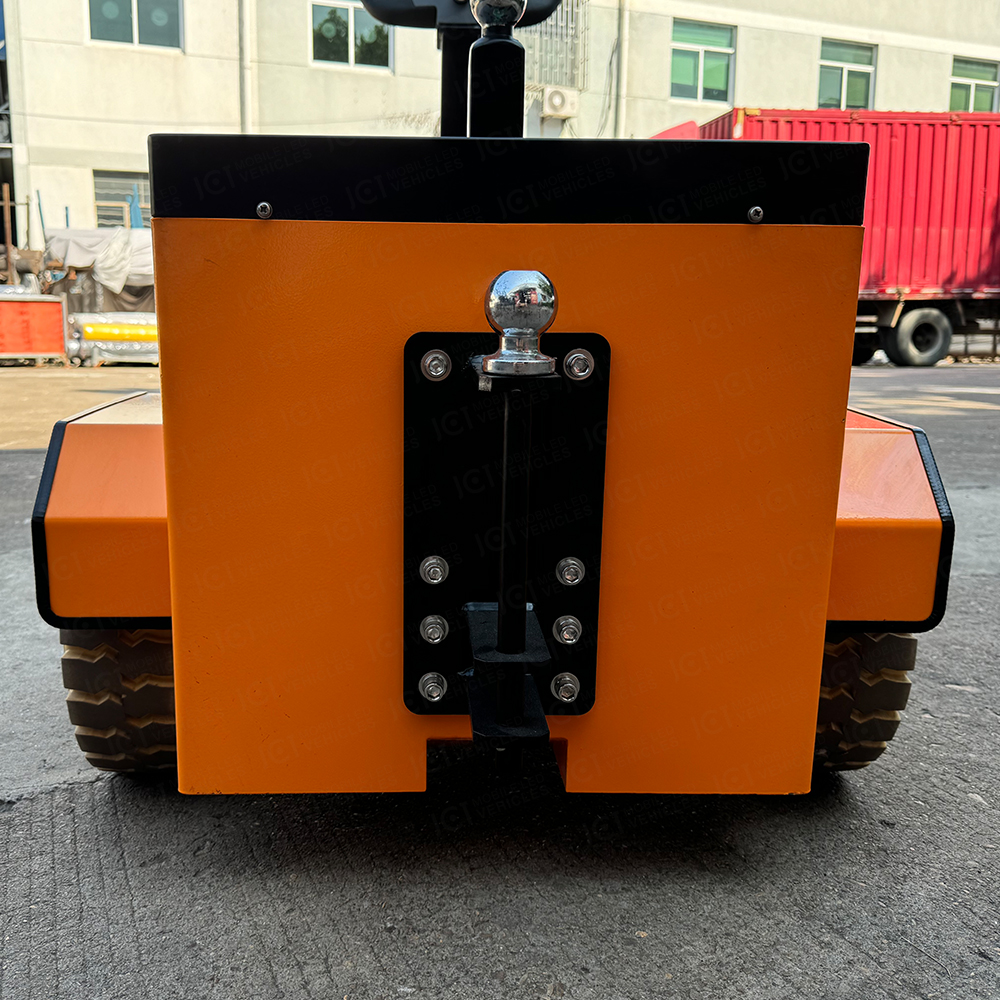

Hand-pull electric tractor-13

To sum up, the hand-pull electric tractor has won the favor and praise of many customers with its excellent performance, convenient operation and a wide range of application scenarios, and is an indispensable and efficient tool for LED screen trailer and other cargo transportation fields.

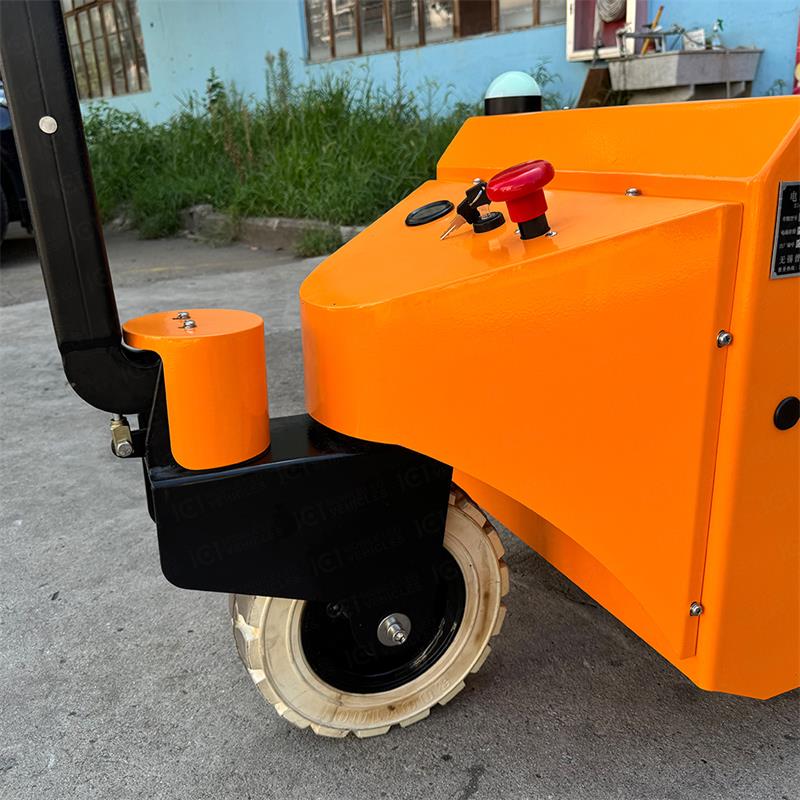

Hand-pull electric tractor-11
Hand-pull electric tractor-13

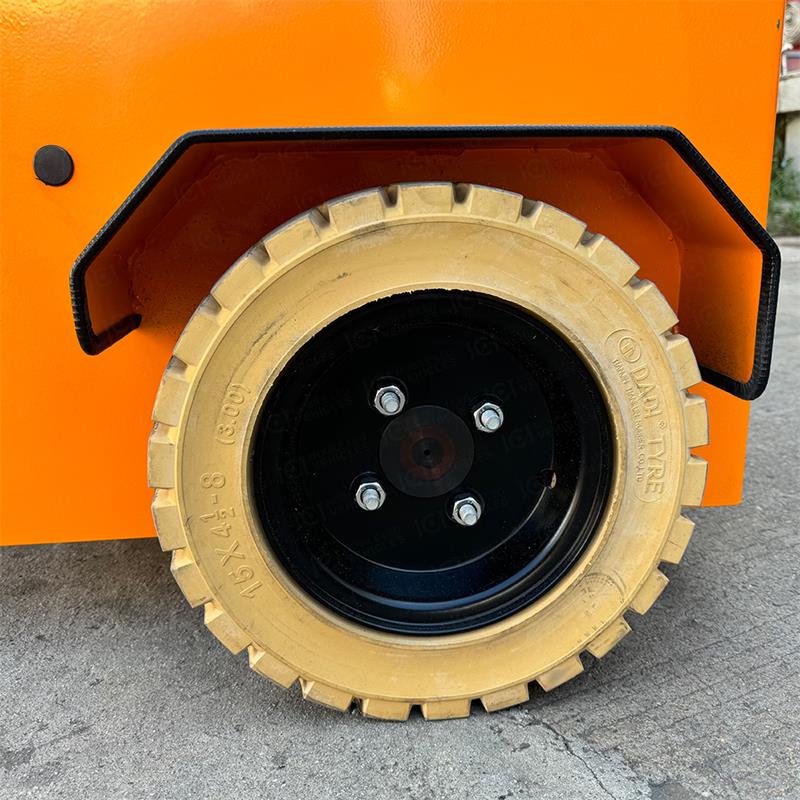

Hand-pull electric tractor-12

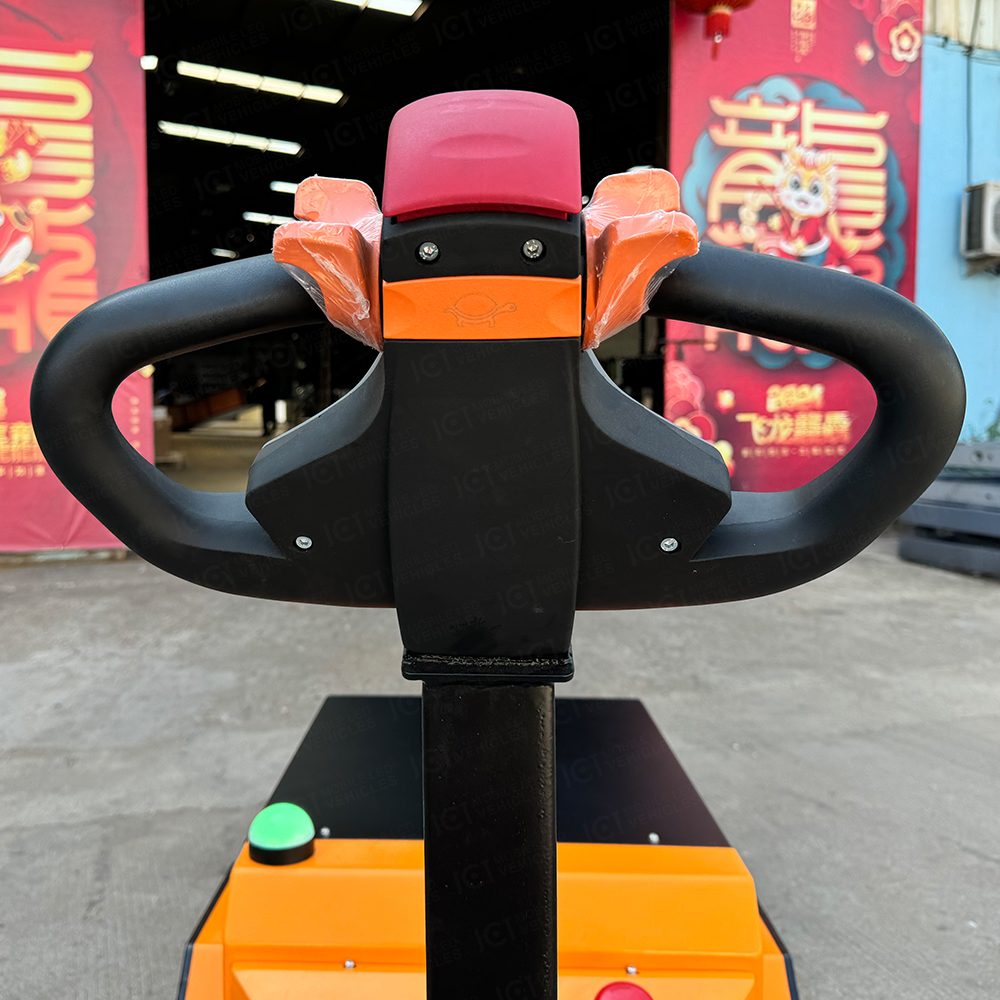

Hand-pull electric tractor-14
