Outdoor mobile LED screen trailer
| Specification | |||
| Trailer appearance | |||
| Total weight | 1600kg | Dimension | 5070mm*1900mm*2042mm |
| Max speed | 120Km/h | Axle | Load weight 1800KG |
| Breaking | Hand brake | ||
| LED Screen | |||
| Dimension | 4000mm*2500mm | Module Size | 250mm(W)*250mm(H) |
| Light brand | kinglight | Dot Pitch | 3.9 mm |
| Brightness | 5000cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 230w/㎡ | Max Power Consumption | 680w/㎡ |
| Power Supply | Meanwell | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV316 | Fresh rate | 3840 |
| Cabinet material | Die casting aluminum | Cabinet weight | aluminum 7.5kg |

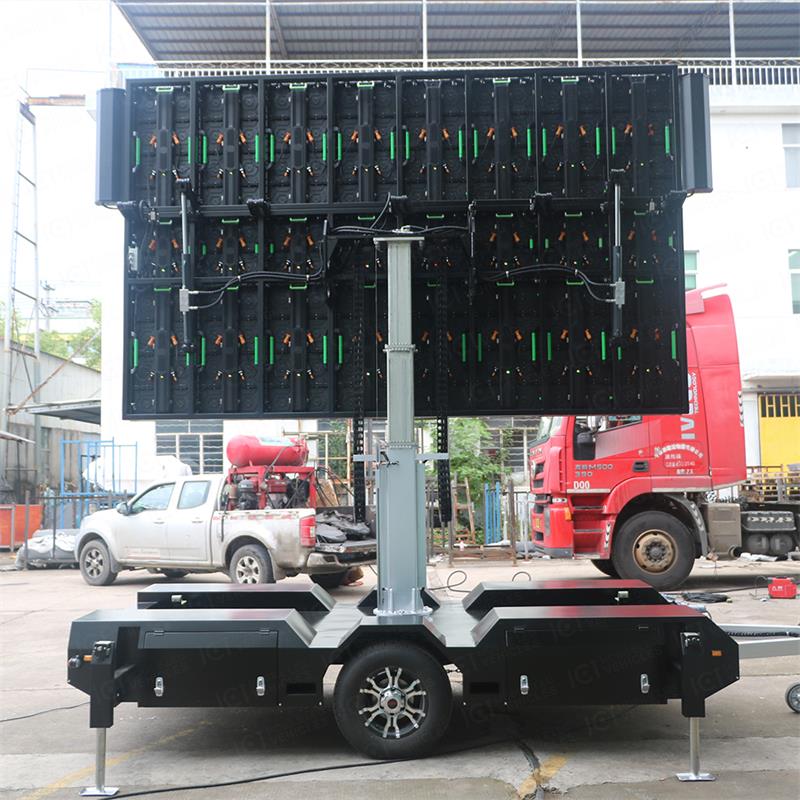

| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1921 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/8 |
| HUB | HUB75 | Pixel density | 65410 Dots/㎡ |
| Module resolution | 64*64Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Power parameter | |||
| Input voltage | Single phase 220V | Output voltage | 220V |
| Inrush current | 28A | Average power consumption | 230wh/㎡ |
| Player System | |||
| Player | NOVA | Modle | TB50-4G |
| Luminance sensor | NOVA | ||
| Sound System | |||
| Power amplifier | Unilateral power output:250W | Speaker | Max power consumption:50W*2 |
| Hydraulic System | |||
| Wind-proof level | Level 8 | Supporting legs | 4 pcs |
| Hydraulic lifting: | 1300mm | Fold LED screen | 1000mm |

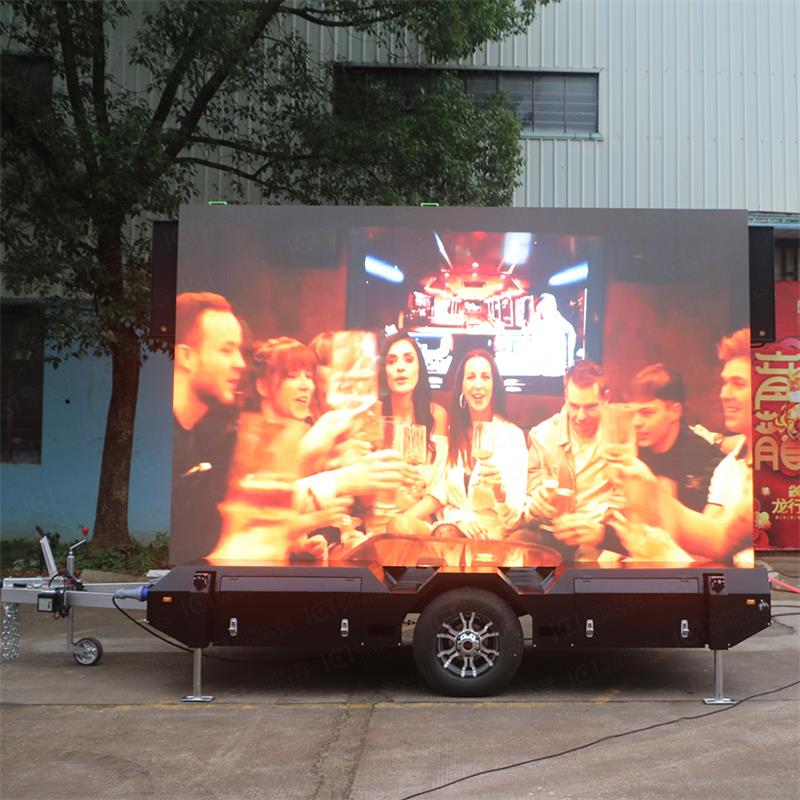

EF10 LED screen trailer adopts the outdoor display screen of P3.91 HD technology screen, the screen size is 4000mm * 2500mm, high pixel density ensures the exquisite and clear picture, even in the strong sunshine, it can maintain the bright color and rich levels, so that every video, every picture can be vividly presented, catch the eyes of the audience. The configuration of the outdoor HD screen not only improves the viewing experience, but also optimizes the power consumption and heat dissipation to ensure the stable operation for a long time.

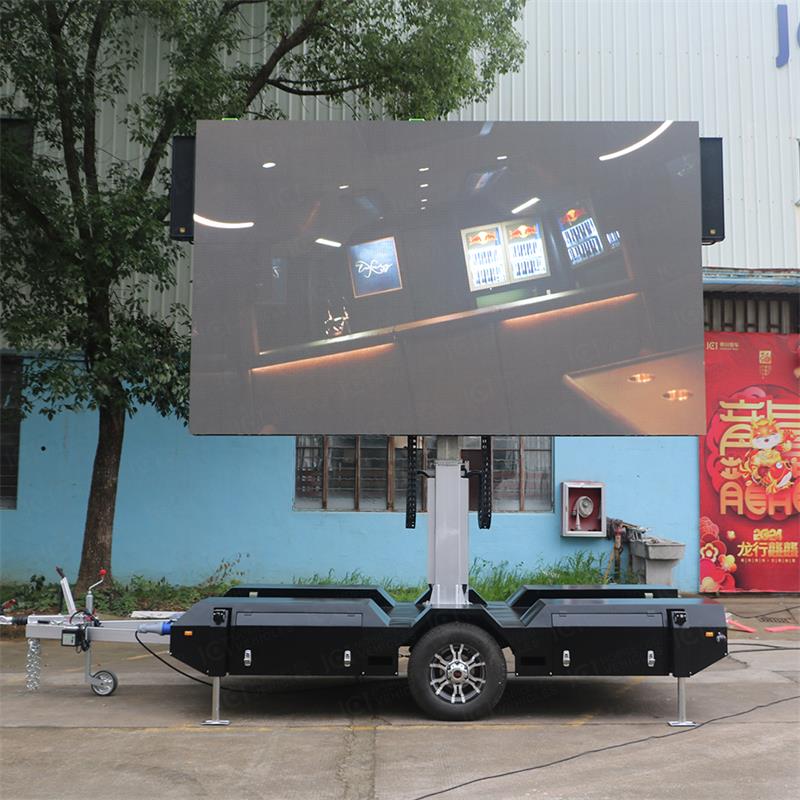

It is worth mentioning that the EF10 LED screen trailer is equipped with the ALKO removable towing chassis, this configuration gives the equipment humanized mobility and flexibility. Users can easily migrate and deploy the screen according to their needs, whether in quick response to temporary exhibitions, or long-distance transportation to different locations. What is more remarkable is the first key lifting function, the lifting travel up to 1300mm, which not only facilitates the installation and disassembly of the equipment, but also can flexibly adjust the screen height according to the field environment, so as to achieve the appropriate visual effect and viewing Angle.

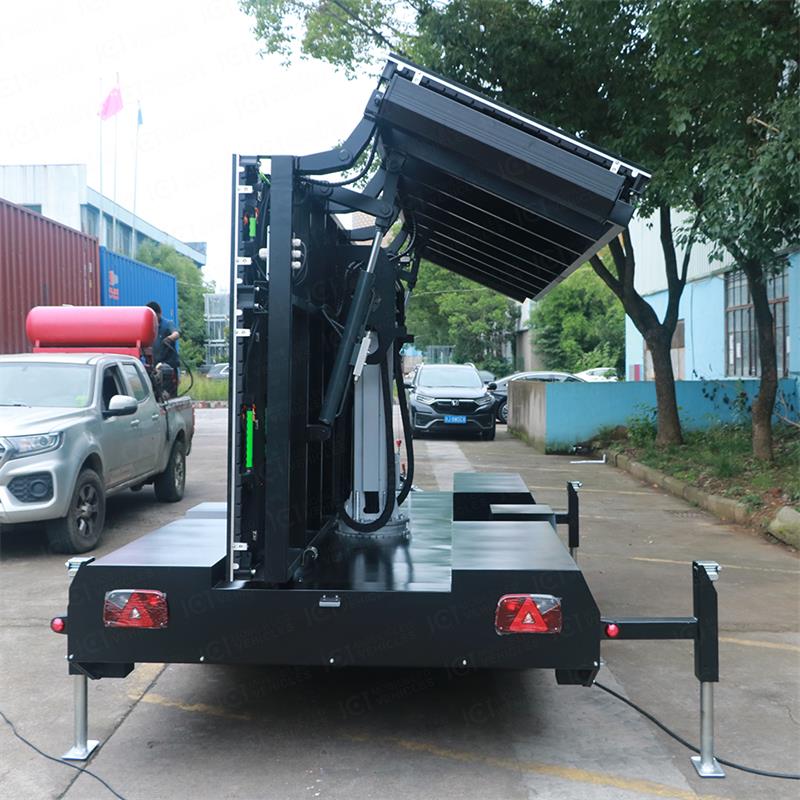

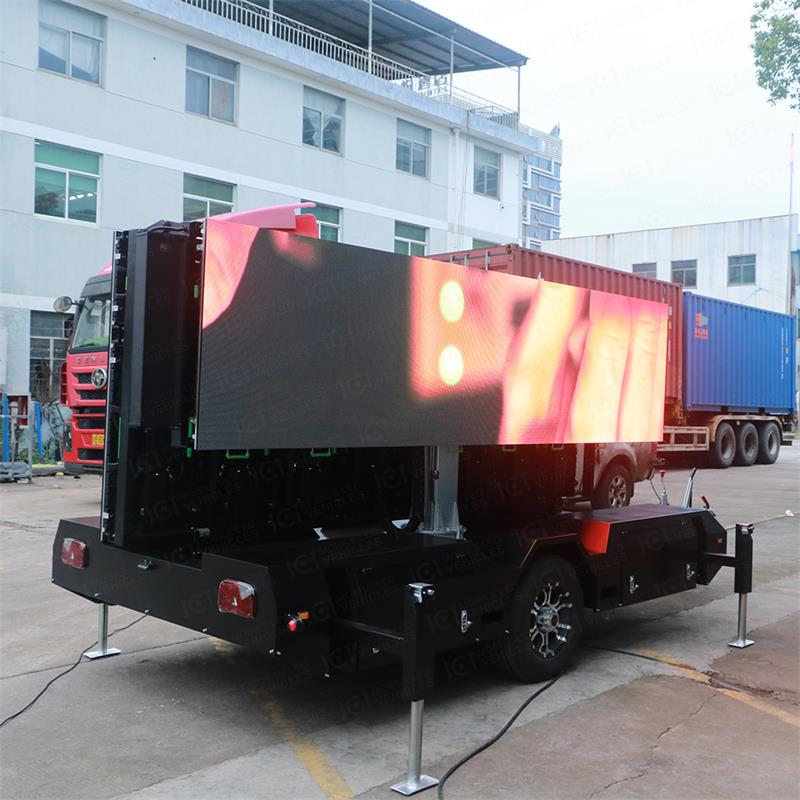

In addition to the lifting function, the EF10 LED screen trailer also incorporates a 180-degree screen folding design, which allows the screen to significantly reduce space when not in use, facilitating storage and transportation. The 330-degree manual rotation function of the screen further broadens the boundary of the application scenario. Users can flexibly adjust the screen orientation according to the site conditions or creative needs, so as to realize the visual coverage of all directions and angles, so that there is no dead corner in information transmission.
EF10 LED screen trailer has become a bright star in the field of outdoor advertising and information communication with its reasonable size configuration, high-definition picture quality, flexible mobility and diversified function configuration. It not only meets the market's demand for excellent, convenient and high-quality display, but also highlights the new trend of outdoor display technology with its humanized design concept and technology application. Whether it is commercial promotion, cultural communication, or public information display, EF10 LED screen trailer will be a new choice for outdoor advertising.
