Portable Flight Case Led Folding screen
| PFC-10M portable Flight case led screen | |||
| Specification | |||
| Flight case appearance | |||
| Flight casesize | 2700×1345×1800mm | Universal wheel | 500kg,4PCS |
| Total weight | 750KG | Flight case parameter | 1, 12mm plywood with black fireproof board 2, 5mmEYA/30mmEVA 3, 8 round draw hands 4, 6 (4 "blue 36-width lemon wheel, diagonal brake) 5, 15MM wheel plate Six, six locks 7. Fully open the cover 8. Install small pieces of galvanized iron plate at the bottom |
| LED Screen | |||
| Dimension | 3600mm*2700mm | Module Size | 150mm(W)*168.75mm(H)，With COB |
| Light brand | Kinglight | Dot Pitch | 1.875 mm |
| Brightness | 1000cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 130w/㎡ | Max Power Consumption | 400w/㎡ |
| Power Supply | E-energy | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV208 | Fresh rate | 3840 |
| Cabinet material | Die casting aluminum | Cabinet weight | aluminum 6kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1415 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/52 |
| HUB | HUB75 | Pixel density | 284444 Dots/㎡ |
| Module resolution | 80*90Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7， | ||
| Power parameter (external prower supply) | |||
| Input voltage | Single phase 120V | Output voltage | 120V |
| Inrush current | 36A | ||
| Control system | |||
| receiving card | 24pcs | NOVA TU15 | 1 pcs |
| Hydraulic lifting | |||
| Hydraulic Lifting and folding system | Lifting Range 2400mm, bearing 2000kg | Fold the ear screens on both sides | 4pcs electric pushrods folded |
| Rotation | Electric rotation 360 degrees | ||

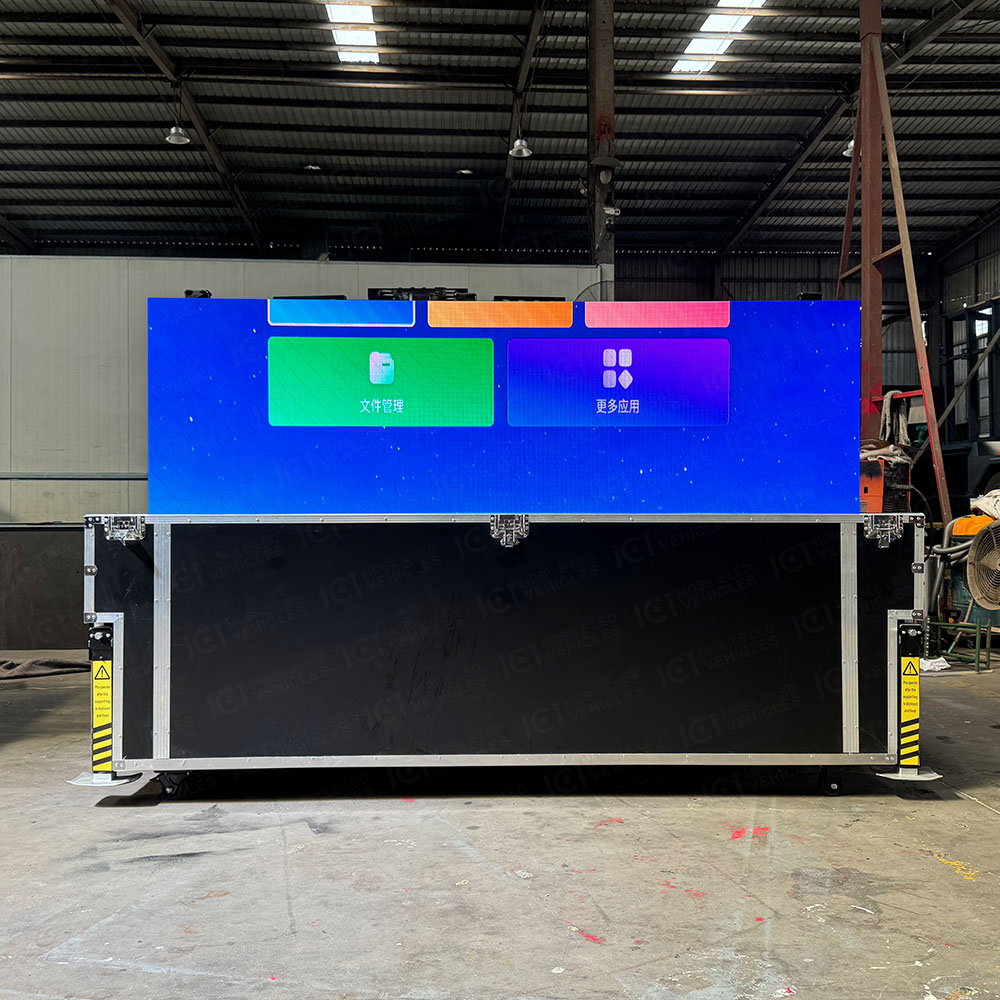

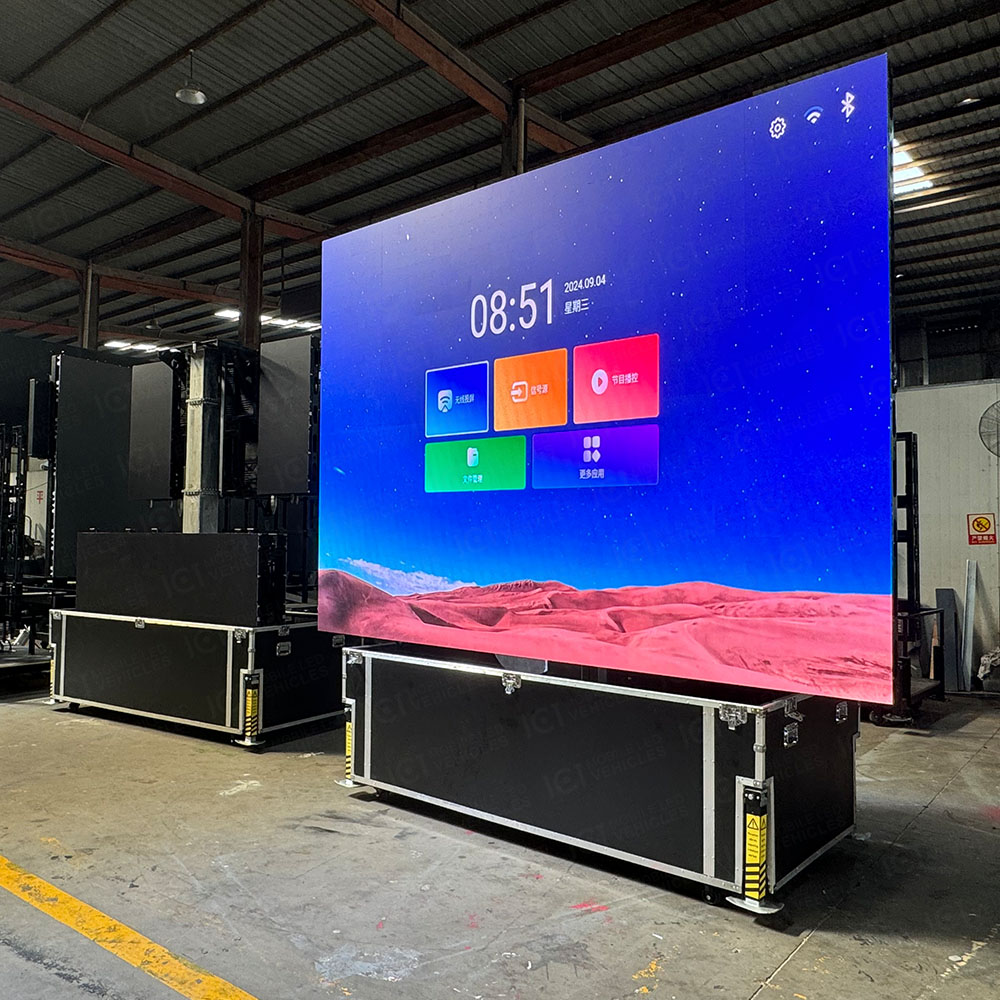

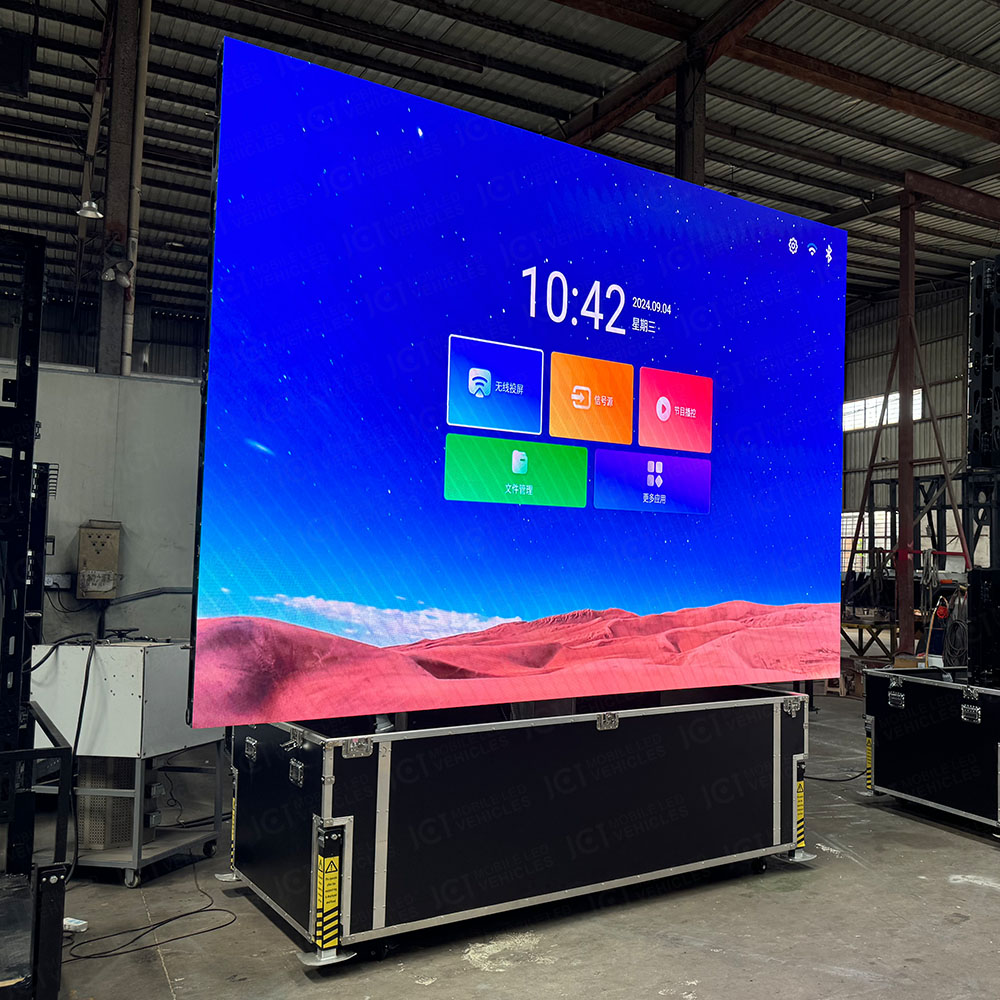

PFC-10M1 portable LED folding screen is HD P1.875 screen, COB package, screen size is 3600 * 2700mm; the whole size is hydraulic structure, remote control is easy to handle, the LED screen can fold 180 degrees; the overall size is 2700X1345X1800mm.
Advantages Of Portable Flight Case Led Folding screen
Using P1.875 HD screen and COB packaging technology, to ensure that the picture is exquisite, full color, continue to maintain excellent display effect, to meet the high quality visual needs.

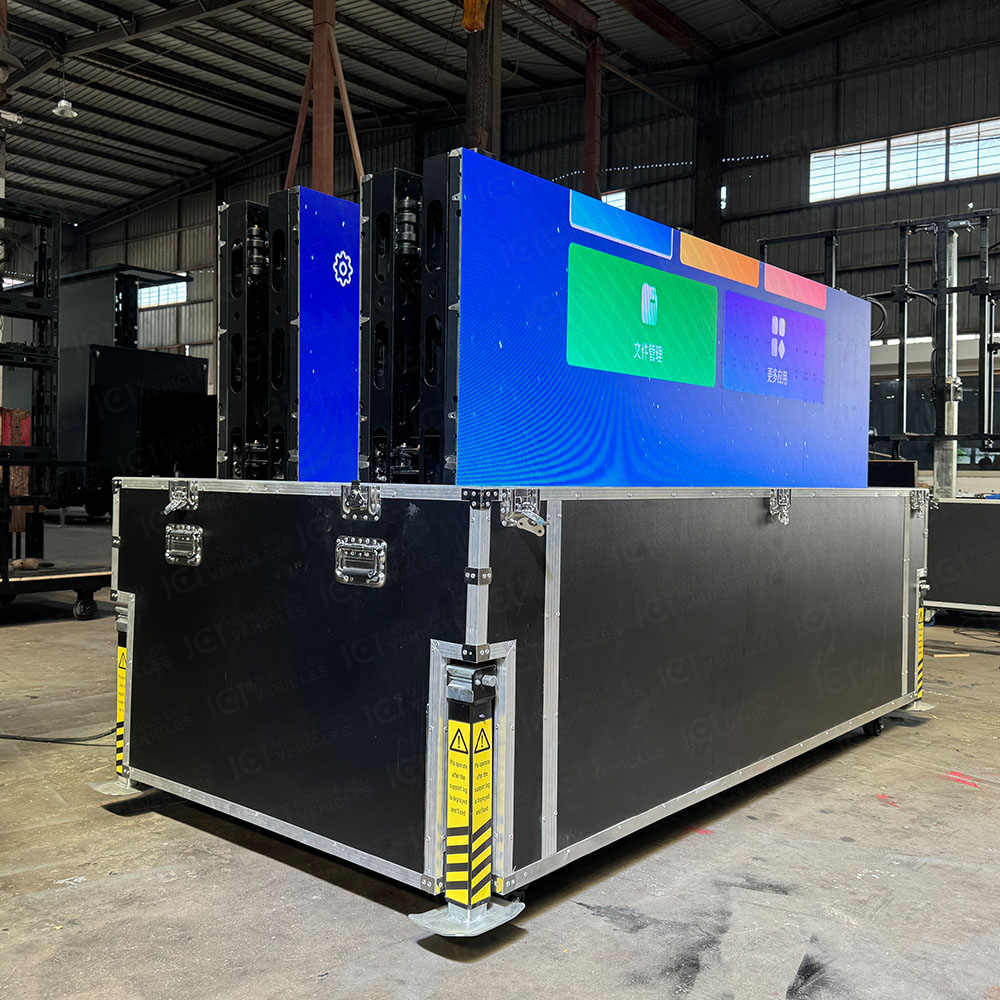

Made of light and high-strength materials, with a compact folding structure, the whole LED display can be easily folded and put into a special flight case, to achieve one-click storage and carrying. The flight case design is strong and durable, with waterproof, dustproof, seismic and other functions, to ensure the safety of the product in the process of transportation.
The use of advanced hydraulic system, combined with remote control operation, make the unfolding and closing process more stable, labor-saving, even non-professionals can easily start, reduce the operation threshold.

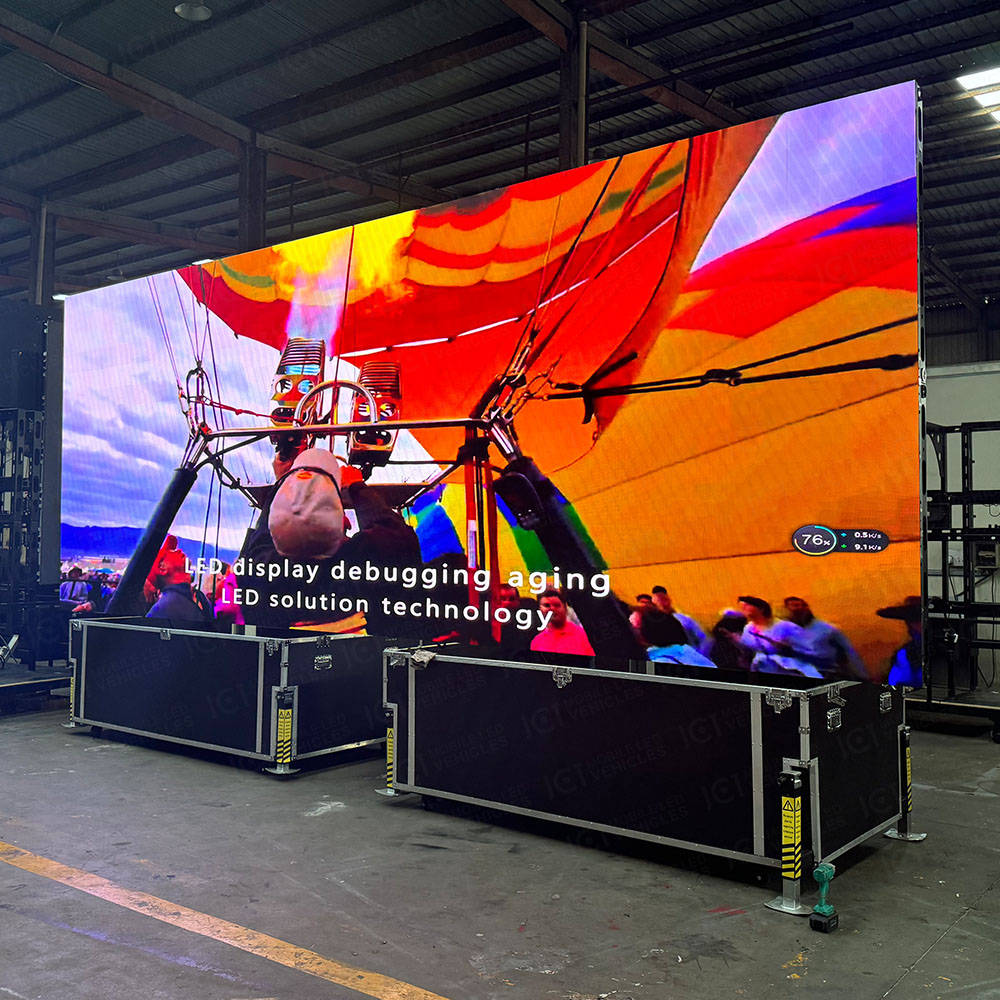

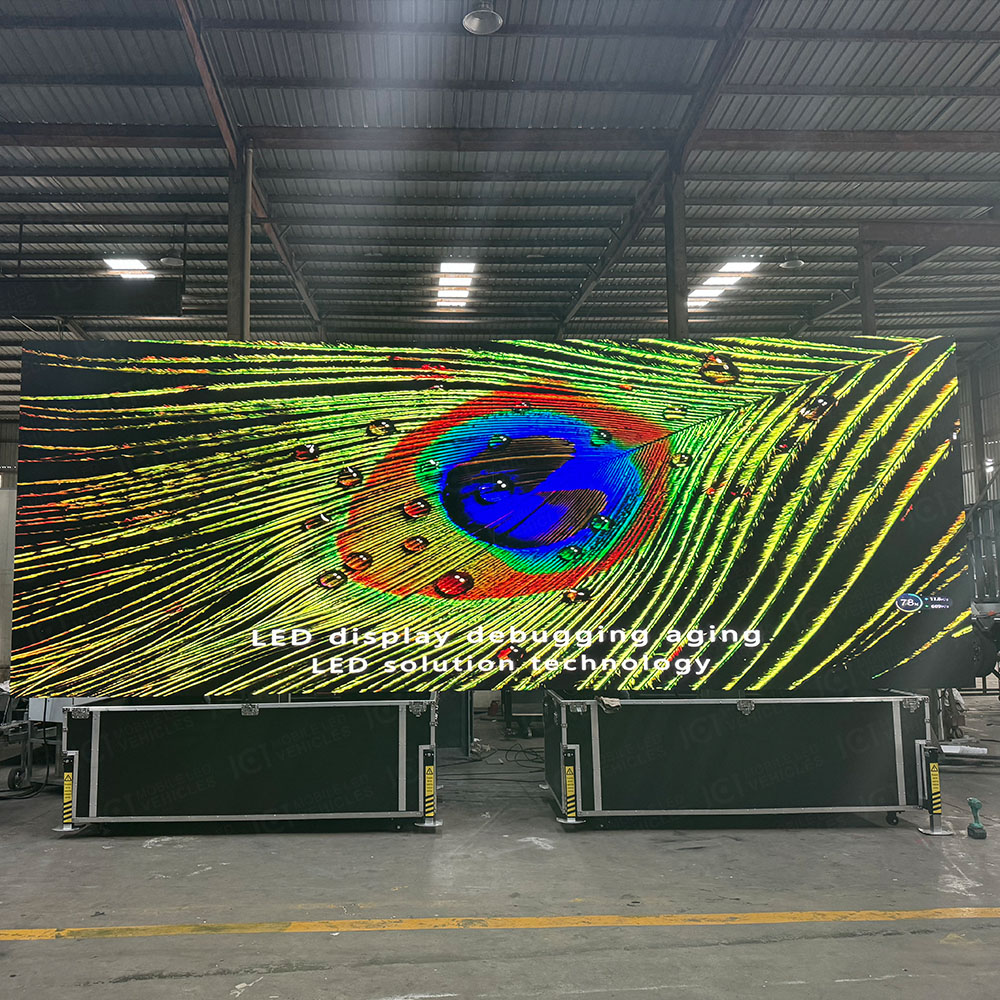

Thanks to the mobility and overall structure, the portable flight case LED folding screen can be installed and debugged in just a few minutes. Without complex tools and professional skills, users can easily build the required size of the display, greatly shortening the preparation time; Meanwhile, this "PFC-10M1 portable flight case LED folding screen" supports the assembly of multiple flight cases, can flexibly adjust the display area according to the actual needs, adapt to the display needs of different sizes, to achieve a broader and shocking visual effect.
Application Scenario Extension
Outdoor performance and music festival: PFC-10M1 LED folding screen is set in the open flight case, audience area or entrance channel, which can quickly attract the attention of the audience, create a strong live atmosphere and improve the performance effect.
Exhibition: In exhibition, expo and other occasions, the product can be used as a booth background wall or information display screen to flexibly display product characteristics, corporate culture or activity information, attract the attention of visitors and enhance the interactive experience.
Conference activities and forums: In large conferences, seminars, product launches and other occasions, assemble multiple air boxes to form a large area display screen for playing PPT, video materials or live broadcast, to enhance the professional and technological sense of the conference.
Sports events: in stadiums, basketball courts, football fields and other sports venues, the product is used to display the event information, score statistics, sponsor advertising, etc., to enhance the audience's sense of participation and enhance the commercial value of the event.
Commercial blocks and billboards: Set up PFC-10M1 LED folding screen as temporary billboards to flexibly change the publicity content, attract customers' attention and promote commercial consumption.
PFC-10M1 portable flight case LED folding screen is an innovative product integrating portability, flexibility and high performance. It not only meets the needs of modern display activities for rapid deployment and flexible changes, but also has won wide recognition in the market through the high-quality display effect and the design concept of energy conservation and environmental protection. Whether it is professional exhibition companies, advertising companies or individual users, they can find display solutions to meet their needs in this product.
