Portable Flight case led screen

Short Description:

Model:PFC-8M

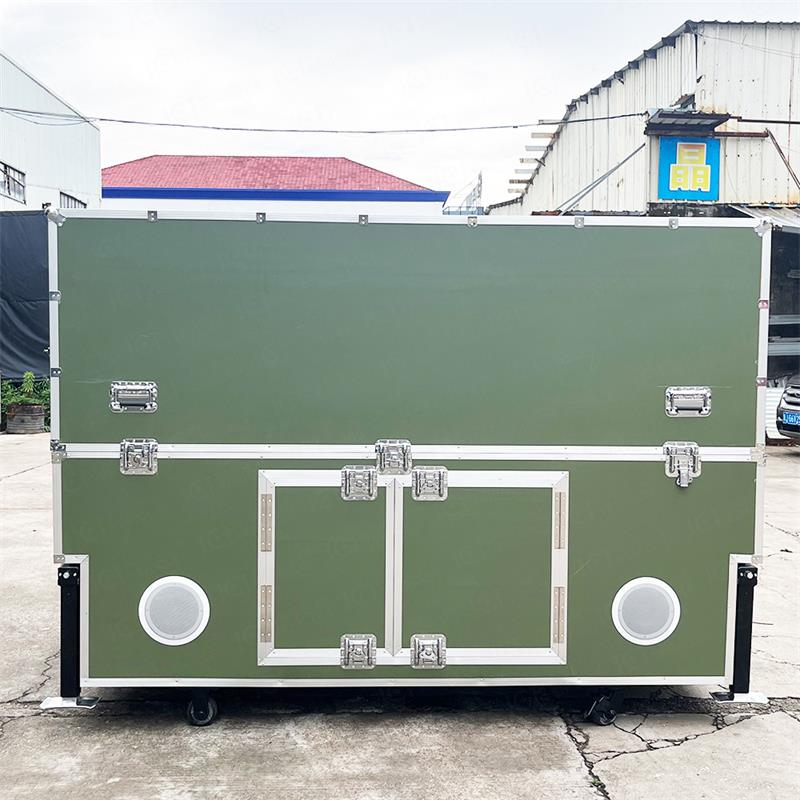

Portable Flight case LED display is a product that integrates LED display and Flight case, its compact design, strong structure, easy to carry and transport. JCT's latest portable Flight case LED display, the PFC-8M, integrates hydraulic lifting, hydraulic rotation and hydraulic folding technology, with a total weight of 900 KG. With a simple button operation, the LED screen with 3600mm * 2025mm can be folded into the 2680×1345×1800mm Flight case, making daily transportation and movement more convenient.


Product Detail

Product Tags

Specification
Flight case appearance
Flight casesize 2680×1345×1800mm Universal wheel 500kg,4PCS
Total weight 900KG Flight case parameter 1, 12mm plywood with black fireproof board
2, 5mmEYA/30mmEVA
3, 8 round draw hands
4, 6 (4 "blue 36-width lemon wheel, diagonal brake)
5, 15MM wheel plate
Six, six locks
7. Fully open the cover
8. Install small pieces of galvanized iron plate at the bottom
LED Screen
Dimension 3600mm*2025mm Module Size 150mm(W)*168.75mm(H),With COB
Light brand Kinglight Dot Pitch 1.875 mm
Brightness 1000cd/㎡ Lifespan 100,000hours
Average Power Consumption 130w/㎡ Max Power Consumption 400w/㎡
Power Supply E-energy DRIVE IC ICN2153
Receiving card Nova MRV208 Fresh rate 3840
Cabinet material Die casting aluminum Cabinet weight aluminum 6kg
Maintenance mode Rear service Pixel structure 1R1G1B
LED packaging method SMD1415 Operating Voltage DC5V
Module power 18W scanning method   1/52
HUB HUB75 Pixel density 284444 Dots/㎡
Module resolution 80*90Dots Frame rate/ Grayscale, color 60Hz,13bit
Viewing angle, screen flatness, module  clearance H:120°V:120°、<0.5mm、<0.5mm Operating temperature -20~50℃
system support Windows XP,WIN 7,
Power parameter (external prower supply)
Input voltage Single phase 120V Output voltage 120V
Inrush current 36A
Control system
receiving card 24pcs NOVA TU15 1 pcs
Hydraulic lifting
Hydraulic Lifting and folding system Lifting Range 2400mm, bearing 2000kg Fold the ear screens on both sides 4pcs electric pushrods folded
Rotation Electric rotation 360 degrees

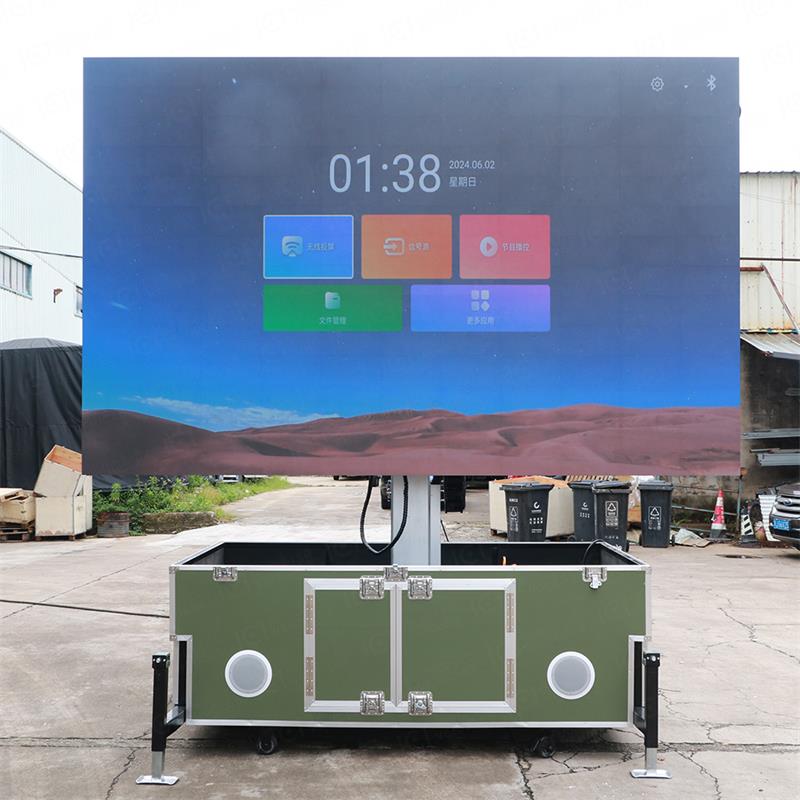

Portable Flight case led screen-01

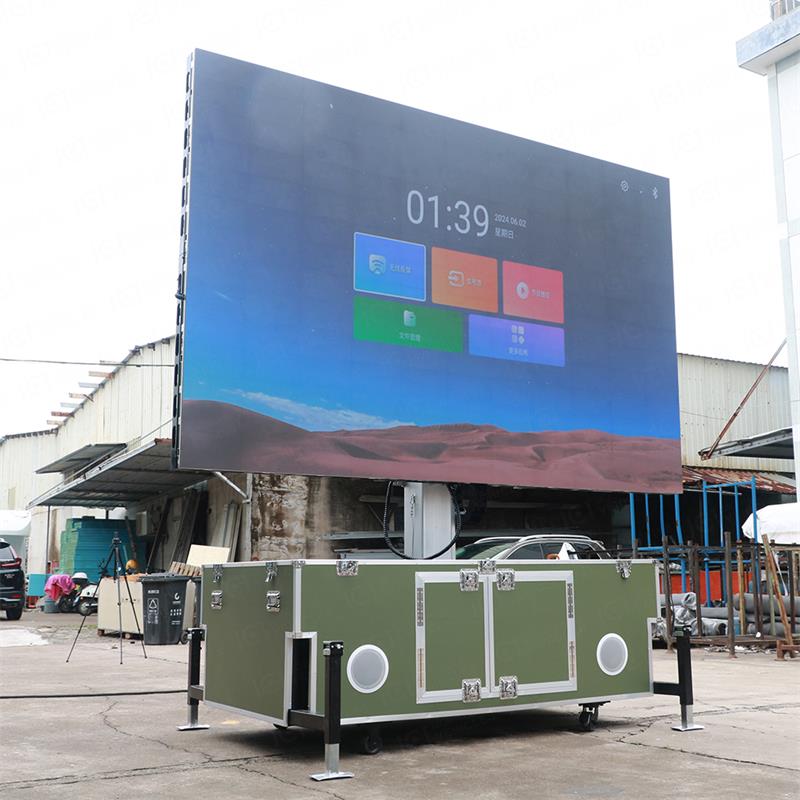

Portable Flight case led screen-02

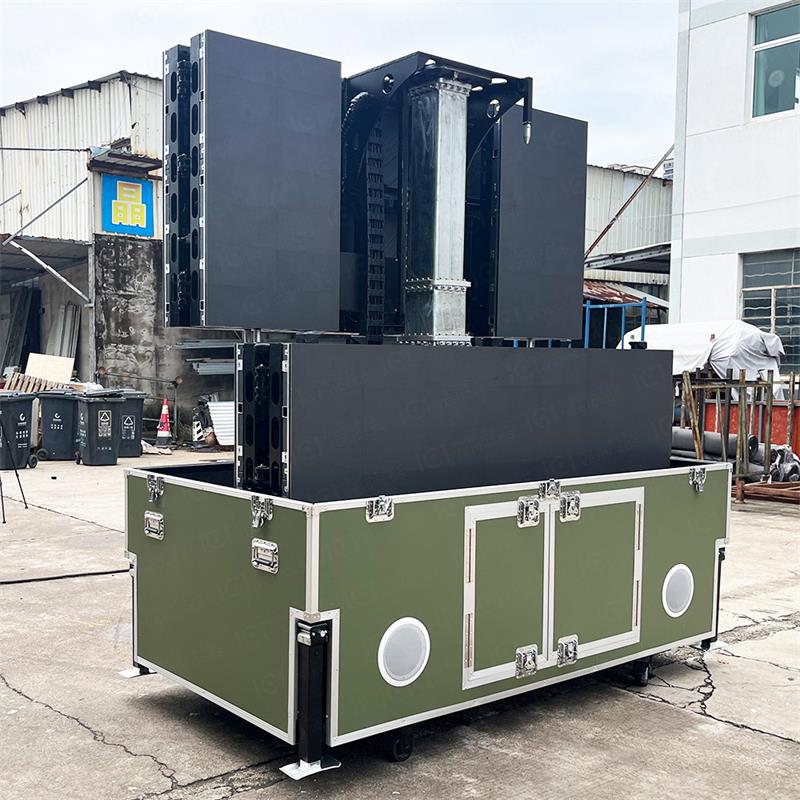

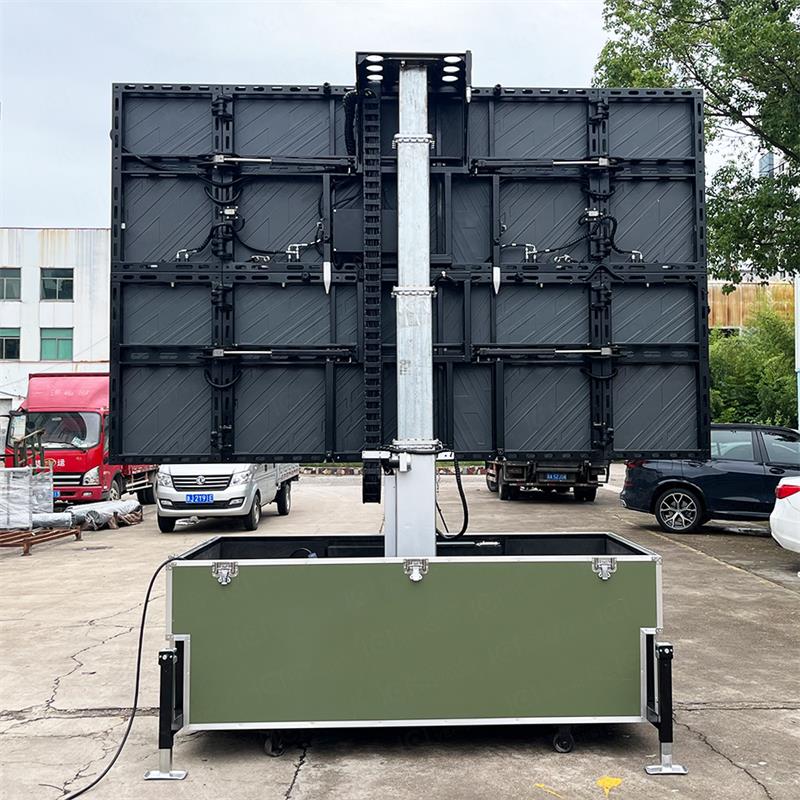

PFC-8M portable Flight case LED display adopts outdoor HD 1.875mm point spacing screen, which is divided into upper and lower parts. On startup, the home screen rises up. When the program limit height is reached, it automatically starts rotating 180 degrees and combining with another screen to form a complete screen. After manually holding the lock, the two screens are locked together, the two sides of the screen synchronously expand the folded side screen, and finally combined into a 3600 * 2025mm large screen.

The portable LED Flight case can also be integrated into multiple Flight case of the same type, and multiple Flight case screens can be assembled into a large LED outdoor display device for a variety of occasions. This design makes the portable Flight case LED display is widely used in a variety of mobile activities, such as exhibitions, shows, events, etc. Its portability allows users to easily carry LED display to different places to meet the needs of different occasions.

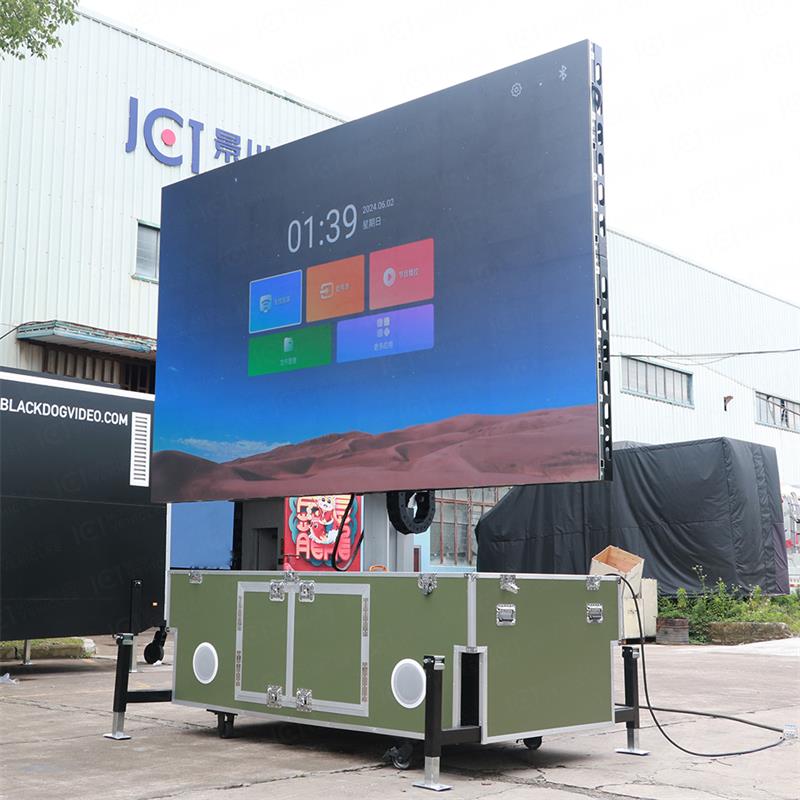

Portable Flight case led screen-03

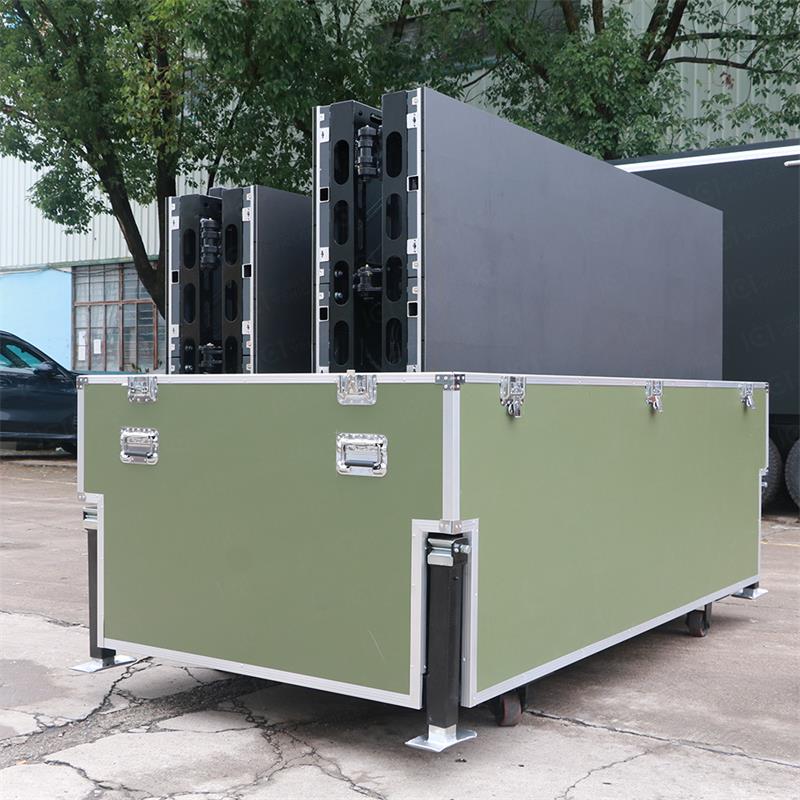

Portable Flight case led screen-04

At the exhibition, the portable Flight case LED display can be used as a tool to display product information and promotional materials. Its high-definition display effect and rich color expression can attract the attention of the audience, to help enterprises to attract more customers. At the same time, the portability of portable Flight case LED display also makes the exhibition more convenient to build. The position and Angle of LED display can be adjusted at any time according to the size and layout of the booth, so as to achieve the best display effect.

At performances and events, the portable Flight case LED display can serve as a display tool for the stage background and visual effects. Its high brightness and high contrast features enable the picture to be clearly displayed under different light conditions, bringing a better visual experience to the audience.

In addition to its application in exhibitions, performances and events, portable Flight case LED display can also be widely used in commercial advertising, outdoor advertising and other fields. Its portability and flexibility make it can be built and displayed anytime and anywhere, providing more publicity channels for merchants and advertisers. At the same time, the HD display effect and remote visibility of the portable Flight case LED display also enable it to attract more attention in the outdoor environment, providing a better platform for the promotion of products and brands.

Whether you need a separate display or multiple screens combined into a large display device, our products can meet your needs. It not only has excellent visual effects, but also has stable performance and durable quality. Using advanced hydraulic technology, easy to operate, can complete the screen lifting, rotation and folding in a short time, saving you valuable time and energy. Our portable LED display Flight case will add more highlights and attraction to your activities and occasions, allowing your information and content to be better displayed and disseminated.

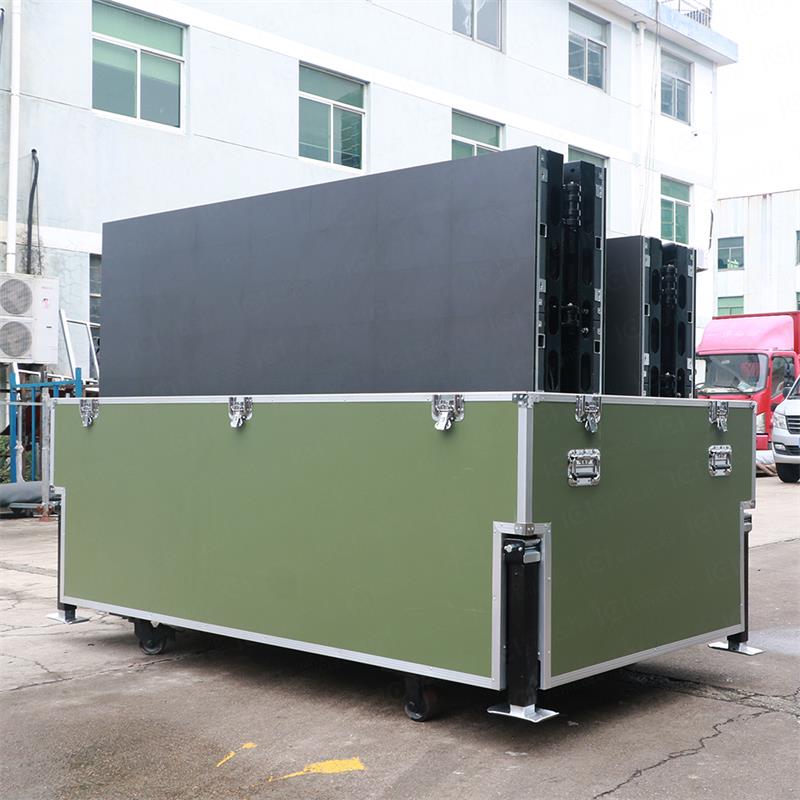

Portable Flight case led screen-05
Portable Flight case led screen-06
Portable Flight case led screen-07
Portable Flight case led screen-08
