Portable folding LED screen
Portable folding LED screen: Innovative technology to light up the future vision
| Specification | |||

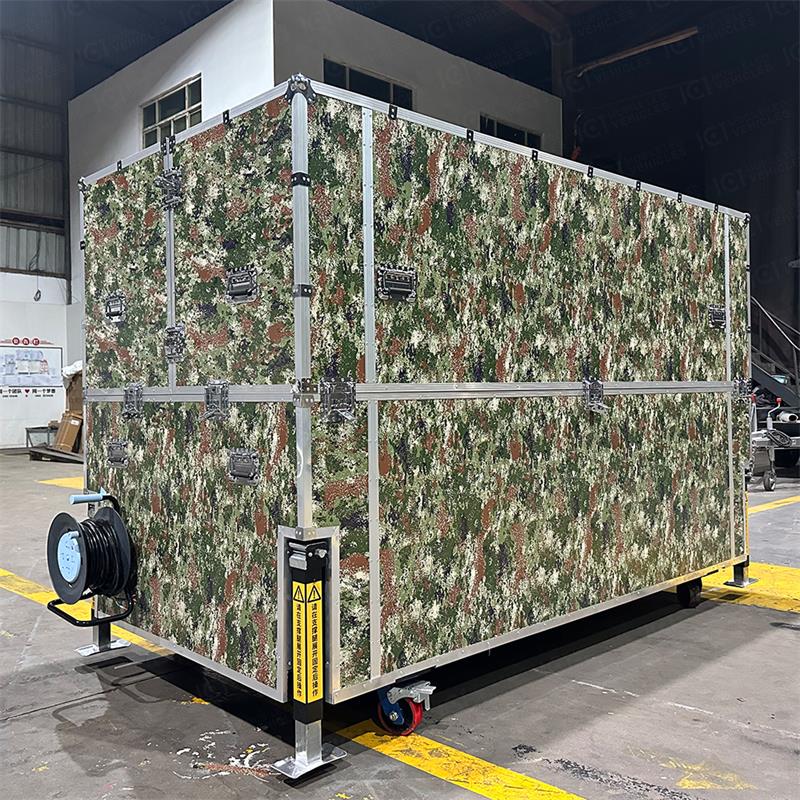

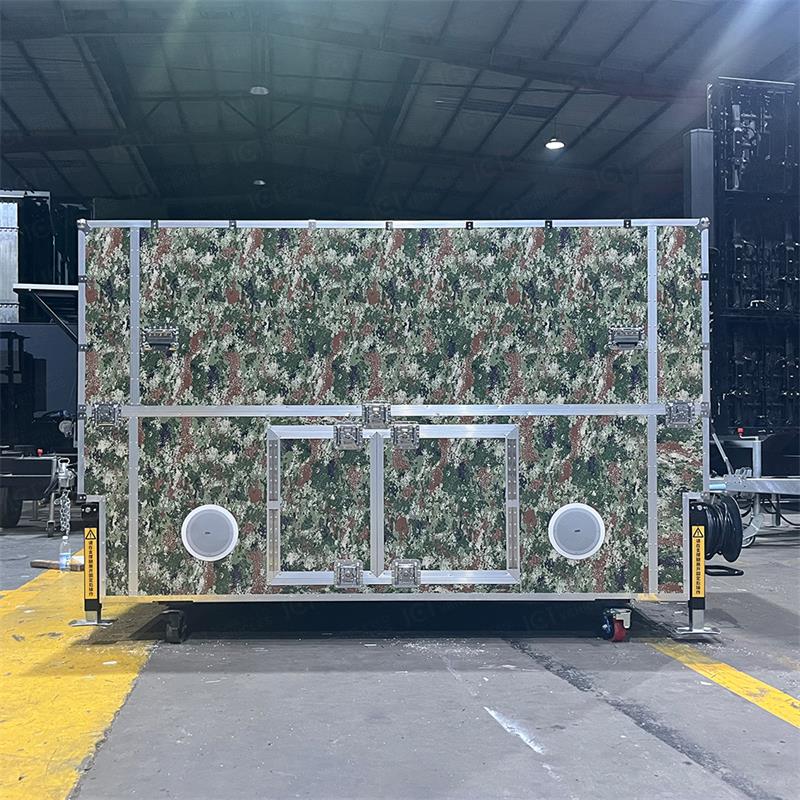

| Flight case appearance | |||
| Flight casesize | 2700×1345×1800mm | Universal wheel | 500kg,4PCS |
| Total weight | 750KG | Flight case parameter | 1.12mm plywood with black fireproof board 2.5mmEYA/30mmEVA 3.8 round draw hands 4.6 (4 "blue 36-width lemon wheel, diagonal brake) 5.15MM wheel plate 6. six locks 7. Fully open the cover 8. Install small pieces of galvanized iron plate at the bottom |
| LED Screen | |||
| Dimension | 3600mm*2700mm | Module Size | 150mm(W)*168.75mm(H)，With COB |
| Light brand | Kinglight | Dot Pitch | 1.875 mm |
| Brightness | 1000cd/㎡ | Lifespan | 100,000hours |
| Average Power Consumption | 130w/㎡ | Max Power Consumption | 400w/㎡ |
| Power Supply | E-energy | DRIVE IC | ICN2153 |
| Receiving card | Nova MRV208 | Fresh rate | 3840 |
| Cabinet material | Die casting aluminum | Cabinet weight | aluminum 6kg |
| Maintenance mode | Rear service | Pixel structure | 1R1G1B |
| LED packaging method | SMD1415 | Operating Voltage | DC5V |
| Module power | 18W | scanning method | 1/52 |
| HUB | HUB75 | Pixel density | 284444 Dots/㎡ |
| Module resolution | 80*90Dots | Frame rate/ Grayscale, color | 60Hz,13bit |
| Viewing angle, screen flatness, module clearance | H：120°V：120°、＜0.5mm、＜0.5mm | Operating temperature | -20~50℃ |
| system support | Windows XP,WIN 7 | ||
| Power parameter (external prower supply) | |||
| Input voltage | Single phase 120V | Output voltage | 120V |
| Inrush current | 36A | ||
| Control system | |||
| receiving card | 24pcs | NOVA TU15 | 1 pcs |
| Hydraulic lifting | |||
| Hydraulic Lifting and folding system | Lifting Range 2400mm, bearing 2000kg | Fold the ear screens on both sides | 4pcs electric pushrods folded |
| Rotation | Electric rotation 360 degrees | ||
LED screen is a new COB screen, with high brightness, high contrast and resistance to environmental interference, ensuring that it can provide clear display effect in various weather and light conditions.

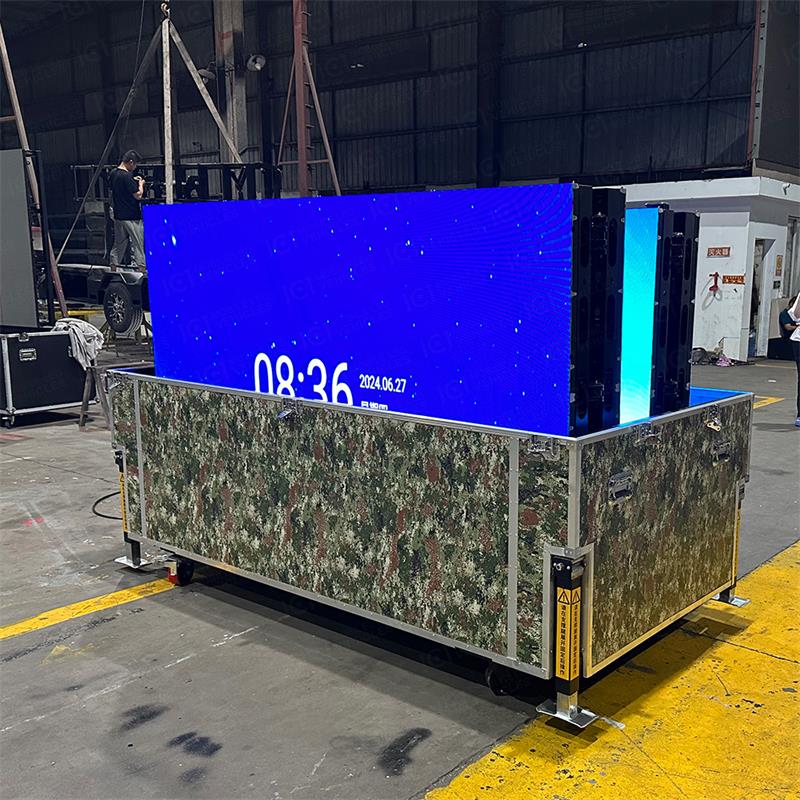

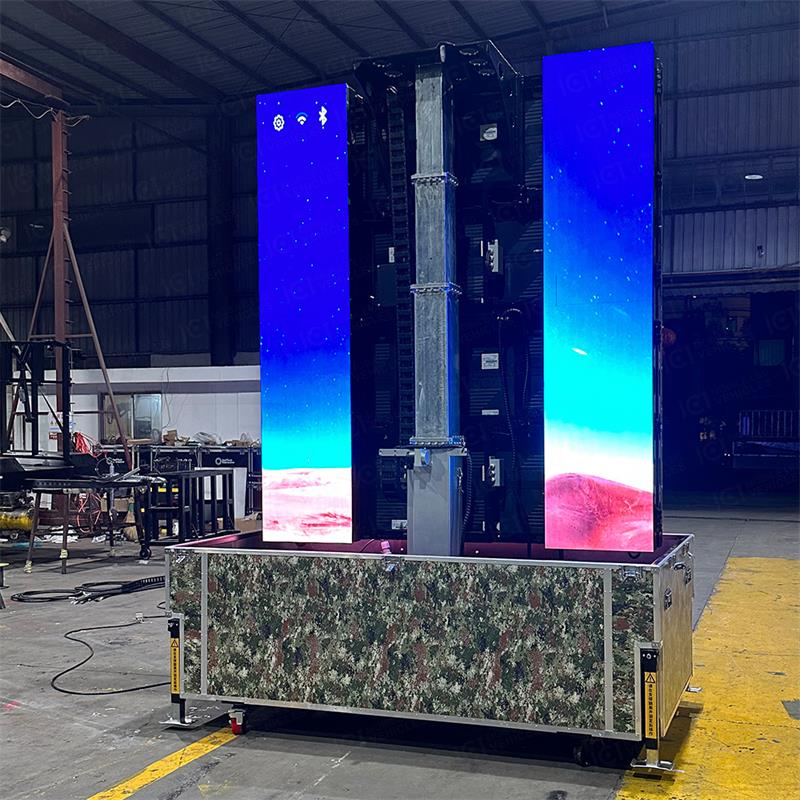

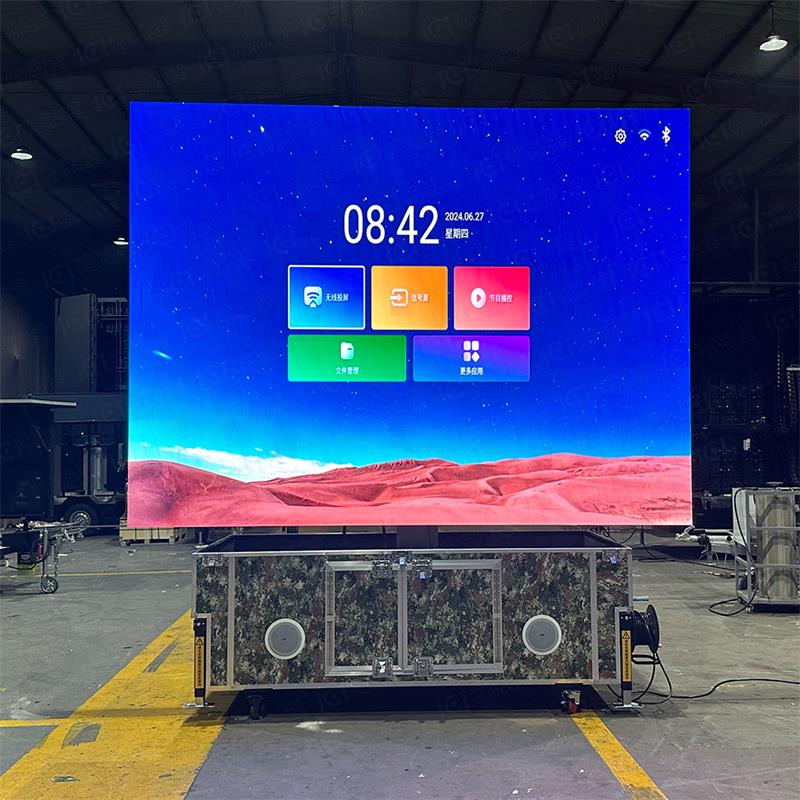

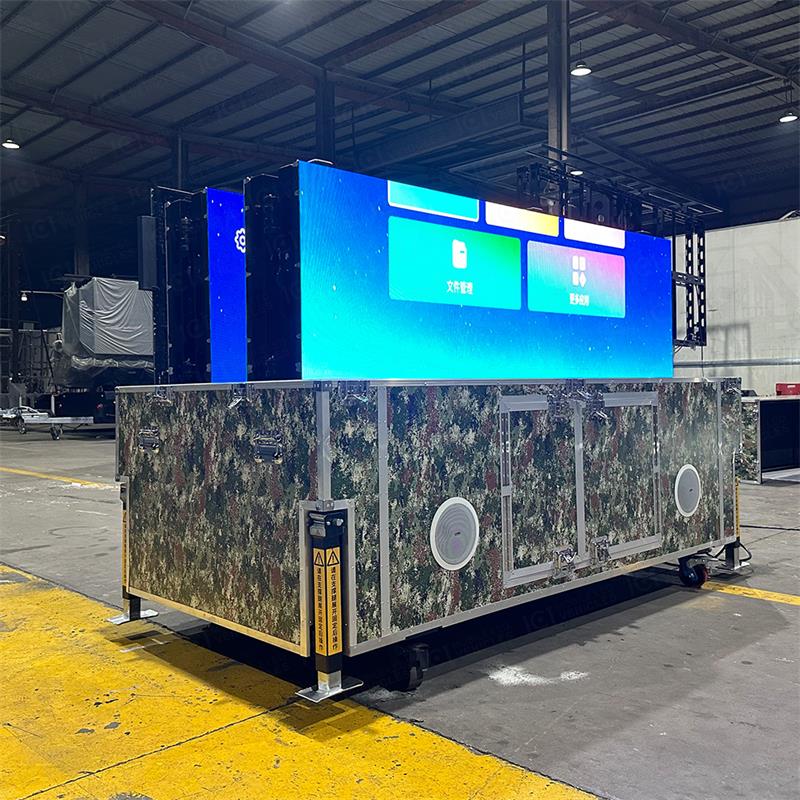

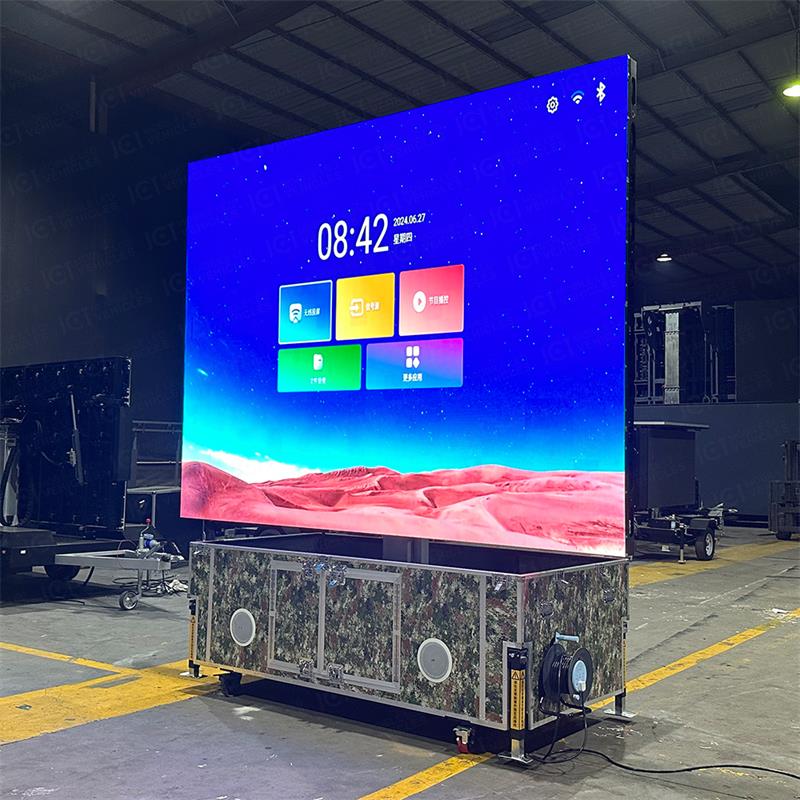

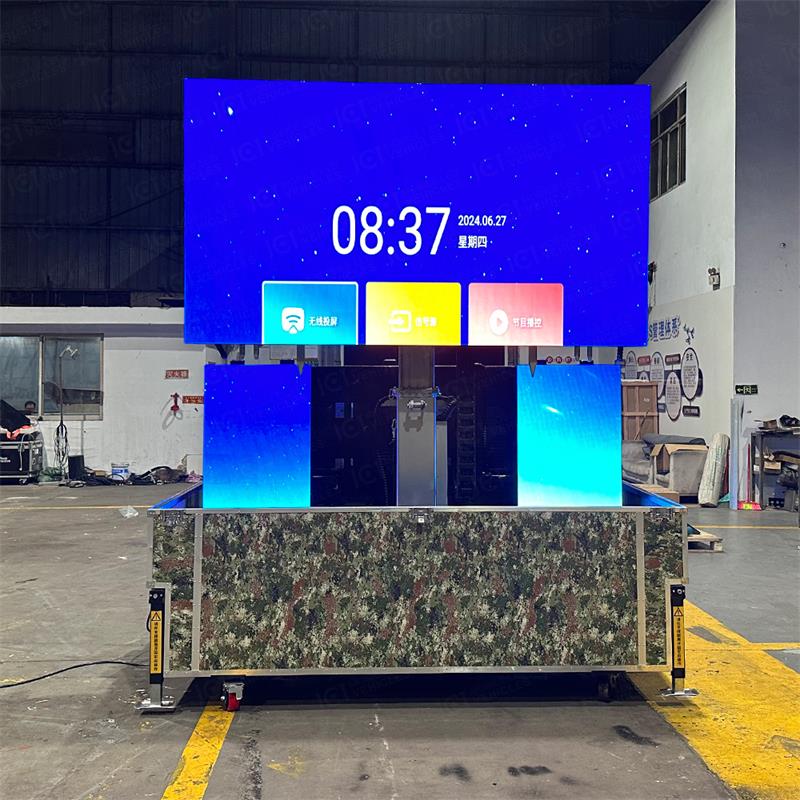

The screen is divided into upper and lower parts, Can be folded for storage, Easy to carry and transport; Functional structure design on the procurement of hydraulic lifting and manual rotation combined, When the main screen is raised to a predetermined height, Then manually rotate 180 degrees combined with another screen, Then drop the lock screen, Lock the two screens firmly together, Simplify the operation and improve the equipment safety; After the screen lock, The side screens on both sides begin to synchronize outward, Until fully deployed to form a size of 3600mm * 2700mm, A complete large screen of nearly 10 square meters, This size makes the PFC-10M portable folding LED screen suitable for a variety of major events, conferences or exhibitions, Provide enough display space to display all kinds of content.
1. Military occasions:
Portability: Troops often need to deploy and move quickly, and portable folding LED screens can be quickly installed and disassembled to meet the rapid response needs of troops.
Flexibility: As needed, the display screen can display important military information, instructions or propaganda content, providing instant communication and information display for troops.
2. Hotel Occasions:
Indoor activities: In a conference, exhibition or event held inside the hotel, the portable folding LED screen can be easily built in any necessary venue to display the conference content, advertising information or event process.
Outdoor promotion: the hotel can use the display screen to attract the attention of customers outdoors, such as playing hotel introductions and promotional activities at the door or in the parking lot.
3.Pavilion occasion:
Exhibition: In the exhibition hall, the portable folding LED screen can display exhibits information, enterprise introduction or activity arrangement, and improve the visiting experience of visitors.
Flexible layout: The display screen can be flexibly adjusted according to the site layout of the pavilion, which is suitable for different sizes and shapes of the exhibition area.
4. Indoor gymnasium occasions:
Game scoring: In basketball, football and other sports competitions, the portable folding LED screen can clearly show the game score and the game time, helping the audience to better understand the game situation.
Advertising display: During competitions or breaks, sponsors' advertisements or promotional videos can be played to provide strong support for brand publicity.
PFC-10M portable folding LED screen portability, flexibility and HD display effect make it an indispensable display tool for troops, hotels, pavilions, indoor stadiums and other occasions, providing more publicity channels for merchants and advertisers, and providing a better platform for the promotion of products and brands.
